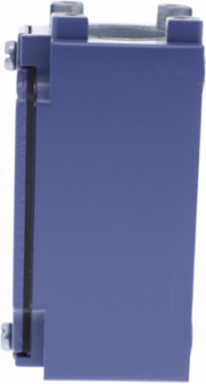

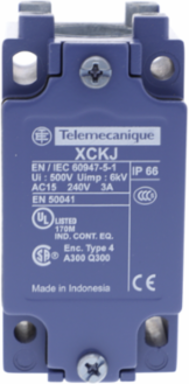

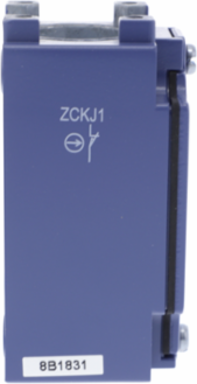

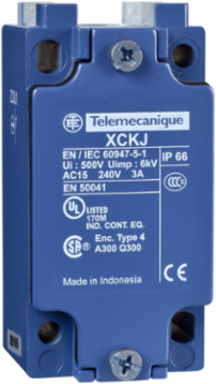

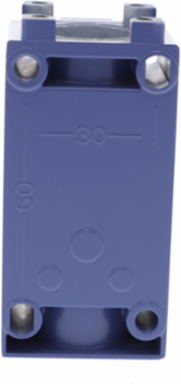

Telemecanique Sensors ZCKJ1H29 Limit switch body, Limit switches XC Standard, ZCKJ, fixed, w/o display, 1NC+1 NO, snap action, M20
- MPN: ZCKJ1H29
- PPN: TES-ZCKJ1H29
CAD
$97.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This ZCK body/contact assembly with connector has a fixed body and a Zamak body. It has 1 x NO + 1 x NC snap action contacts and a M20 cable entry. It can be matched with any head, levers or actuator from the XCKD, XCKP and XCKT ranges.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Telemecanique Limit switches XC Standard
- Associated Head
- ZCKE61 || ZCKE05 || ZCKE06 || ZCKE67 || ZCKE08 || ZCKE21 || ZCKE65 || ZCKE629 || ZCKE62 || ZCKE63 || ZCKE66 || ZCKE64 || ZCKE23 || ZCKE619
- Product Or Component Type
- limit switch body
- Series Name
- standard format
- Body Type
- fixed
- Body Material
- metal
- Device Short Name
- ZCKJ
Contacts Materialsilver plated contacts
Cable Entry1 entry tapped for M20 x 1.5 cable gland
Number Of Steps1 1 position
Contacts Type And Composition1 NC + 1 NO
Contact Operationsnap action
Product CompatibilityXCKJ
Number Of Poles2
Complementary
- Height
- 84-84 mm
- Short-Circuit Protection
- 10 A cartridge fuse gG
- Electrical Connection
- screw-clamp terminals 1 x 0.34...2 x 1.5 mm²
- Local Display
- without
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60664 || 6 kV IEC 60947-1
- [Ui] Rated Insulation Voltage
- 500 V 3)IEC 60947-1 contact block || 300 VCSA C22.2 No 14 contact block || 300 VUL 508 contact block
- [Ie] Rated Operational Current
- 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 appendix A || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 appendix A
- Depth
- 36 mm
Terminals Description Iso N°1(21-22)NC || (13-14)NO || (23-24)NO || (11-12)NC
Minimum Actuation Speed0.01 m/min
[Ithe] Conventional Enclosed Thermal Current10 A
Net Weight0.3 kg
Electrical Durability5000000 cycles, DC-13 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Positive Openingwith
Width43 mm
Maximum Resistance Across Terminals0.25 mOhm IEC 60255-7 category 3
Environment
- Ambient Air Temperature For Operation
- 10-120 °C high temperature
- Ambient Air Temperature For Storage
- 10-120 °C
- Ip Degree Of Protection
- IP66
Ik Degree Of ProtectionIK07
Environmental Characteristichigh temperature
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110614EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
