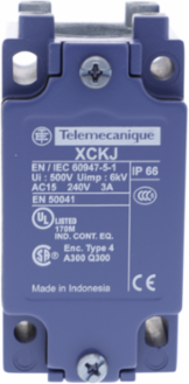

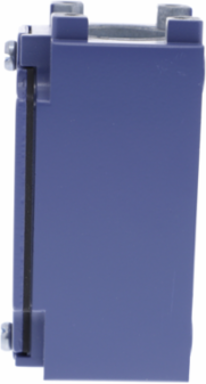

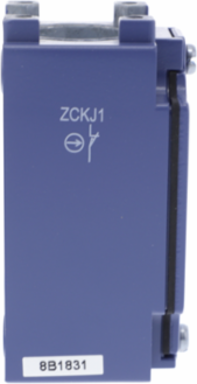

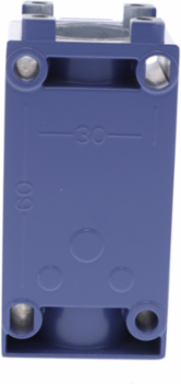

Telemecanique Sensors ZCKJ5H7 Limit switch body, Limit switches XC Standard, ZCKJ, fixed, w/o display, 1NC+1 NO, slow break, 1/2"NPT
- MPN: ZCKJ5H7
- PPN: TES-ZCKJ5H7
- UNSPSC: 39122213
CAD
$108.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This ZCK body/contact assembly with connector has a fixed body and a Zamak body. It has 1 x NO + 1 x NC break-before-make (slow break) contacts and a 1/2" NPT cable entry. It can be matched with any head, levers or actuator from the XCKD, XCKP and XCKT ranges.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Telemecanique Limit switches XC Standard
- Associated Head
- ZCKE63 || ZCKE62 || ZCKE619 || ZCKE66 || ZCKE64 || ZCKE61 || ZCKE21 || ZCKE08 || ZCKE06 || ZCKE65 || ZCKE67 || ZCKE05 || ZCKE23 || ZCKE629
- Product Or Component Type
- limit switch body
- Series Name
- standard format
- Body Type
- fixed
- Body Material
- metal
- Device Short Name
- ZCKJ
Contacts Materialsilver plated contacts
Cable Entry1 entry tapped for 1/2" NPT conduit
Number Of Steps1 1 position
Contacts Type And Composition1 NC + 1 NO
Contact Operationslow-break, break before make
Product CompatibilityXCKJ
Number Of Poles2
Complementary
- Height
- 89-89 mm
- Short-Circuit Protection
- 4 A cartridge fuse gG
- Electrical Connection
- screw-clamp terminals 1 x 0.5...2 x 2.5 mm²
- Local Display
- without
- [Uimp] Rated Impulse Withstand Voltage
- 0.8 kV IEC 60664 || 0.8 kV IEC 60947-1
- [Ui] Rated Insulation Voltage
- 500 V 3)IEC 60947-1 contact block || 300 VCSA C22.2 No 14 contact block || 300 VUL 508 contact block
- [Ie] Rated Operational Current
- 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 appendix A || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 appendix A
- Depth
- 44 mm
Terminals Description Iso N°1(11-12)NC || (21-22)NC
Minimum Actuation Speed6 m/min
[Ithe] Conventional Enclosed Thermal Current10 A
Net Weight0.32 kg
Electrical Durability5000000 cycles, DC-13 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Positive Openingwith
Width40 mm
Maximum Resistance Across Terminals0.25 mOhm IEC 60255-7 category 3
Environment
- Ambient Air Temperature For Operation
- -25-70 °C standard environment
- Ambient Air Temperature For Storage
- -40-70 °C
- Ip Degree Of Protection
- IP66
Ik Degree Of ProtectionIK07
Environmental Characteristicstandard environment
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110614EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
