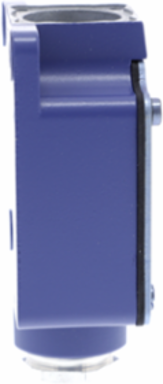

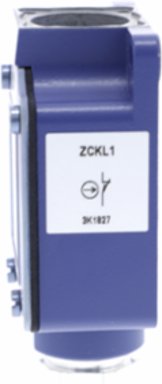

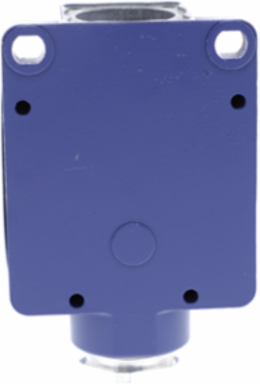

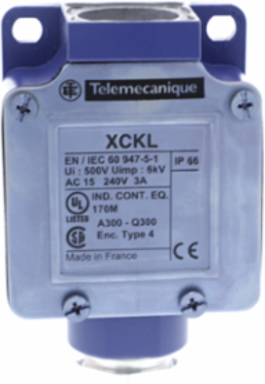

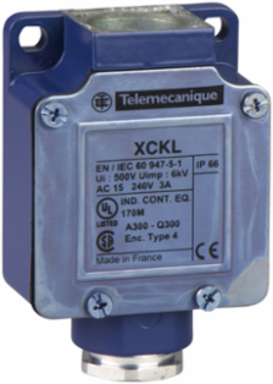

Telemecanique Sensors ZCKL5H7 Limit switch body, Limit switches XC Standard, ZCKL, 1NC+1 NO, slow break, 1/2"NPT
Telemecanique Sensors ZCKL5H7 Limit switch body, Limit switches XC Standard, ZCKL, 1NC+1 NO, slow break, 1/2"NPT
- MPN: ZCKL5H7
- PPN: TES-ZCKL5H7
- UNSPSC: 39122213
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$99.78/ EA
Description
This ZCK body/contact assembly with connector has a Zamak body. It has 1 x NO + 1 x NC break-before-make (slow break) contacts and multiple1/2" NPT cable entries. It can be matched with any head, levers or actuator from the XCKD, XCKP and XCKT ranges.
Specifications
Environment
- Ambient Air Temperature For Storage
- -40-70 °C
- Ambient Air Temperature For Operation
- -25-70 °C standard environment
- Ip Degree Of Protection
- IP66
Environmental Characteristicstandard environment
Ik Degree Of ProtectionIK05
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110614EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
Complementary
- Height
- 72-72 mm
- Terminals Description Iso N°1
- (31-32)NC || (13-14)NO || (33-34)NO
- [Ui] Rated Insulation Voltage
- 500 V 3)IEC 60947-1 contact block || 300 VCSA C22.2 No 14 contact block || 300 VUL 508 contact block
- Minimum Actuation Speed
- 6 m/min
- Electrical Connection
- screw-clamp terminals 1 x 0.5...2 x 2.5 mm²
- Width
- 52 mm
- Local Display
- without
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV IEC 60664 || 4 kV IEC 60947-1
Electrical Durability5000000 cycles, DC-13 120 V, 1 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 3 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 2 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Short-Circuit Protection6 A cartridge fuse gG
Positive Openingwith
[Ie] Rated Operational Current3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 appendix A || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 appendix A
[Ithe] Conventional Enclosed Thermal Current10 A
Depth30 mm
Net Weight0.21 kg
Maximum Resistance Across Terminals0.25 mOhm IEC 60255-7 category 3
Specifications
- Series Name
- standard format
- Body Type
- fixed
- Contact Operation
- slow-break, break before make
- Associated Head
- ZCKD21 || ZCKD109 || ZCKD02 || ZCKD23 || ZCKD59 || ZCKD10 || ZCKD239 || ZCKD91 || ZCKD41 || ZCKD17 || ZCKD06 || ZCKD029 || ZCKD16 || ZCKD05 || ZCKD81 || ZCKD15 || ZCKD219 || ZCKD08
- Cable Entry
- 1 entry tapped for 1/2" NPT conduit
- Product Compatibility
- XCKL
- Device Short Name
- ZCKL
Contacts Type And Composition1 NC + 1 NO
Range Of ProductTelemecanique Limit switches XC Standard
Contacts Materialsilver plated contacts
Body Materialmetal
Product Or Component Typelimit switch body
Number Of Steps1 1 position
Number Of Poles2
