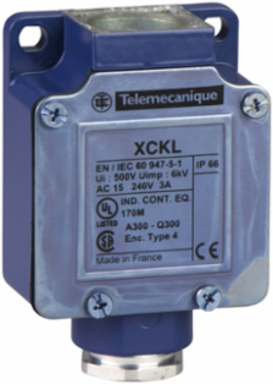

Telemecanique Sensors ZCKLD31H7 Limit switch body, Limit switches XC Standard, ZCKL, 1NC+2 NO, snap action, 1/2"NPT
- MPN: ZCKLD31H7
- PPN: TES-ZCKLD31H7
- UNSPSC: 39122213
CAD
$122.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Limit switch body, Limit switches XC Standard, ZCKL, 1NC+2 NO, snap action, 1/2"NPT
Documentation & Downloads
Specifications
Key Specifications
- Series Name
- standard format
- Body Type
- fixed
- Contact Operation
- snap action
- Associated Head
- ZCKD109 || ZCKD02 || ZCKD10 || ZCKD21 || ZCKD17 || ZCKD23 || ZCKD239 || ZCKD59 || ZCKD029 || ZCKD219 || ZCKD06 || ZCKD15 || ZCKD81 || ZCKD41 || ZCKD08 || ZCKD16 || ZCKD91 || ZCKD05
- Cable Entry
- 1 entry tapped for 1/2" NPT conduit
- Product Compatibility
- XCKL
- Device Short Name
- ZCKL
Contacts Type And Composition1 NC + 2 NO
Range Of ProductTelemecanique Limit switches XC Standard
Contacts Materialsilver plated contacts
Body Materialmetal
Product Or Component Typelimit switch body
Number Of Steps1 1 position
Number Of Poles3
Complementary
- Height
- 64-64 mm
- Terminals Description Iso N°1
- (21-22)NC || (13-14)NO
- [Ui] Rated Insulation Voltage
- 400 V 3)IEC 60947-1 contact block || 300 VCSA C22.2 No 14 contact block || 300 VUL 508 contact block
- Minimum Actuation Speed
- 0.01 m/min
- Electrical Connection
- screw-clamp terminals 1 x 0.34...2 x 0.75 mm²
- Width
- 64 mm
- Local Display
- without
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60664 || 6 kV IEC 60947-1
Electrical Durability5000000 cycles, DC-13 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Short-Circuit Protection10 A cartridge fuse gG
Positive Openingwith
[Ie] Rated Operational Current1.5 A 240 V, AC-15, B300 EN/IEC 60947-5-1 appendix A || 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 appendix A
[Ithe] Conventional Enclosed Thermal Current6 A
Depth30 mm
Net Weight0.21 kg
Maximum Resistance Across Terminals0.25 mOhm IEC 60255-7 category 3
Environment
- Ambient Air Temperature For Storage
- -40-70 °C
- Ambient Air Temperature For Operation
- -25-70 °C standard environment
- Ip Degree Of Protection
- IP66
Environmental Characteristicstandard environment
Ik Degree Of ProtectionIK05
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110614EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
