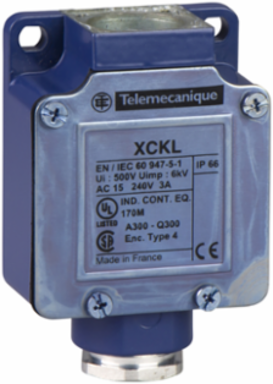

Telemecanique Sensors ZCKL8H7 Limit switch body, Limit switches XC Standard, ZCKL, 2 NO, slow break, 1/2"NPT
Telemecanique Sensors ZCKL8H7 Limit switch body, Limit switches XC Standard, ZCKL, 2 NO, slow break, 1/2"NPT
- MPN: ZCKL8H7
- PPN: TES-ZCKL8H7
- UNSPSC: 39122213
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$103.70/ EA
Specifications
Environment
- Ambient Air Temperature For Storage
- -40-70 °C
- Ambient Air Temperature For Operation
- -25-70 °C standard environment
- Ip Degree Of Protection
- IP66
Environmental Characteristicstandard environment
Ik Degree Of ProtectionIK05
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Environmental Disclosure
- ENVPEP110614EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Eu Rohs DirectiveNot applicable, out of EU RoHS legal scope
Complementary
- Height
- 72-72 mm
- Terminals Description Iso N°1
- (21-22)NC || (31-32)NC || (13-14)NO
- [Ui] Rated Insulation Voltage
- 500 V 3)IEC 60947-1 contact block || 300 VCSA C22.2 No 14 contact block || 300 VUL 508 contact block
- Minimum Actuation Speed
- 6 m/min
- Electrical Connection
- screw-clamp terminals 1 x 0.5...2 x 2.5 mm²
- Width
- 52 mm
- Local Display
- without
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV IEC 60664 || 4 kV IEC 60947-1
Electrical Durability5000000 cycles, DC-13 120 V, 1 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 3 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 2 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Short-Circuit Protection6 A cartridge fuse gG
Positive Openingwithout
[Ie] Rated Operational Current3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 appendix A || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 appendix A
[Ithe] Conventional Enclosed Thermal Current10 A
Depth30 mm
Net Weight0.21 kg
Maximum Resistance Across Terminals0.25 mOhm IEC 60255-7 category 3
Specifications
- Series Name
- standard format
- Body Type
- fixed
- Contact Operation
- slow-break, simultaneous
- Associated Head
- ZCKD029 || ZCKD59 || ZCKD02 || ZCKD23 || ZCKD21 || ZCKD239 || ZCKD10 || ZCKD109 || ZCKD81 || ZCKD41 || ZCKD06 || ZCKD16 || ZCKD91 || ZCKD15 || ZCKD08 || ZCKD05 || ZCKD17 || ZCKD219
- Cable Entry
- 1 entry tapped for 1/2" NPT conduit
- Product Compatibility
- XCKL
- Device Short Name
- ZCKL
Contacts Type And Composition2 NO
Range Of ProductTelemecanique Limit switches XC Standard
Contacts Materialsilver plated contacts
Body Materialmetal
Product Or Component Typelimit switch body
Number Of Steps1 1 position
Number Of Poles2
