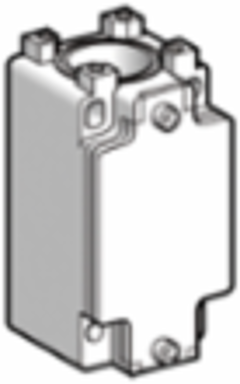

Telemecanique Sensors ZCKJ25H7 Limit switch body, Limit switches XC Standard, ZCKJ, fixed, w/o display, 2C/O, snap action, 1/2"NPT
- MPN: ZCKJ25H7
- PPN: TES-ZCKJ25H7
- UNSPSC: 39122213
CAD
$186.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch body, Limit switches XC Standard, ZCKJ, fixed, w/o display, 2C/O, snap action, 1/2"NPT
Documentation & Downloads
Specifications
Key Specifications
| Series Name | standard format |
|---|---|
| Body Type | fixed |
| Contact Operation | snap action |
| Associated Head | ZCKE67 || ZCKE23 || ZCKE06 || ZCKE66 || ZCKE62 || ZCKE64 || ZCKE619 || ZCKE63 || ZCKE629 || ZCKE08 || ZCKE61 || ZCKE21 || ZCKE05 || ZCKE65 |
| Cable Entry | 1 entry tapped for 1/2" NPT conduit |
| Product Compatibility | XCKJ |
| Device Short Name | ZCKJ |
| Contacts Type And Composition | 2 C/O |
|---|---|
| Range Of Product | Telemecanique Limit switches XC Standard |
| Contacts Material | silver plated contacts |
| Body Material | metal |
| Product Or Component Type | limit switch body |
| Number Of Steps | 1 1 position |
| Number Of Poles | 2 |
Complementary
| Height | 102-102 mm |
|---|---|
| Terminals Description Iso N°1 | (11-12)NC || (23-24)NO || (21-22)NC || (13-14)NO |
| [Ui] Rated Insulation Voltage | 500 V 3)IEC 60947-1 contact block || 300 VCSA C22.2 No 14 contact block || 300 VUL 508 contact block |
| Minimum Actuation Speed | 0.01 m/min |
| Electrical Connection | screw-clamp terminals 1 x 0.75...2 x 1.5 mm² |
| Width | 40 mm |
| Local Display | without |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60664 || 6 kV IEC 60947-1 |
| Electrical Durability | 5000000 cycles, DC-13 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C |
|---|---|
| Short-Circuit Protection | 10 A cartridge fuse gG |
| Positive Opening | without |
| [Ie] Rated Operational Current | 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 appendix A || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 appendix A |
| [Ithe] Conventional Enclosed Thermal Current | 10 A |
| Depth | 60 mm |
| Net Weight | 0.455 kg |
| Maximum Resistance Across Terminals | 0.25 mOhm IEC 60255-7 category 3 |
Environment
| Ambient Air Temperature For Storage | 10-120 °C |
|---|---|
| Ambient Air Temperature For Operation | 10-120 °C high temperature |
| Ip Degree Of Protection | IP66 |
| Environmental Characteristic | high temperature |
|---|---|
| Ik Degree Of Protection | IK07 |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP110614EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
