Schneider Electric ILE2T661PC1A0 Brushless DC Motor 122mm, 24-48V, Modbus TCP, 131W

MPN: ILE2T661PC1A0
PPN: SCH-ILE2T661PC1A0

$2356.77

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Designed for optimal performance in automated systems, this brushless DC motor from Schneider Electric operates efficiently at voltage levels between 24 to 48V and delivers a substantial output of 131W. Its precise engineering ensures reliable motion control, making it an excellent choice for various applications in automation. The integration of Modbus TCP compatibility facilitates seamless connectivity and communication within modern control networks, enhancing its versatility in motion control solutions. Whether you are upgrading existing systems or designing new ones, this motor stands out for its efficiency and adaptability in dynamic environments.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, Germany

Communications & Management Attributes

Communication Interface	Modbus TCP, Integrated

Physical Attributes

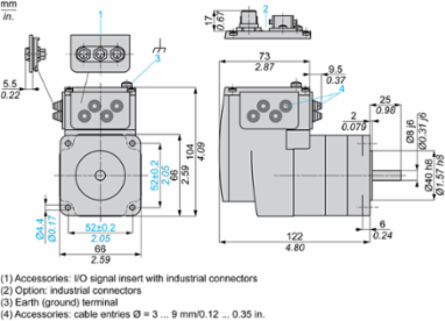

Motor Flange Size	66 mm

Shaft Length	25 mm

Complementary Attributes

Maximum Axial Force Fa	30 N force pressure), 30 N tensile force)
Maximum Radial Force Fr	80 N
Maximum Switching Current	100 mA per output200 mA total

Maximum Mechanical Speed	6500 rpm, 7000 rpm
Maximum Supply Current	0.1 A power stage disabled)6.8 A 24 V3.8 A 48 V

Important Information Attributes

Persona Type Ids	EU, OM, OM8
Coefficient 1 1	-0.0001648 N.m/rpm, -0.0001648 N.m/rpm
Peak Stall Torque	0.43 N.m 24 V, 0.43 N.m 48 V
Supply Voltage Description	single phase 48 V DC, single phase 24 V DC
Certificate Agency	TÜV, cUL, UL
Carbon Footprint Of The Distribution Phase [A4]	0.2967558252, 0.3 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.017595, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	289 kg CO2 eq., 289.2808
Local Publishable Date	2026-01-12
Stocking Flag	Y
Device Type	Motion - integrated drive
Traceability	Yes
Average Life Duration	15 year(s)
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2011005EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1901
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Advanced
Market Segmentation	Industrial
Associated Fuse Rating	16 A
Circle Diameter Of The Mounting Holes	73.54 mm
Coefficient M0	2.8571E-06 N.m/rpm
Compatibility Code	ILE
Current Consumption	7000 mA peak5500 mA maximum continuous
Detent Torque	0.08 N.m
Electrical Connection	industrial connector
Gear Box Type	without
Marking	CE
Mounting Holes Diameter	4.4 mm
Network Number Of Phases	1
Nominal Speed	4800 rpm 24 V6000 rpm 48 V
Number Of Motor Stacks	1
Phase	single phase
Product Or Component Type	motion integrated drive
Reduction Ratio	1:1
Rotor Inertia	0.17 kg.cm²
Service Life In Hours	20000 h bearing
Shaft End	untapped
Sizing Reference	ILE2_661_A0
Speed Feedback Resolution	12 points/turn
Sustainable Packaging	No
Transmission Rate	10, 100 Mbits
Vibration Resistance	20 m/s² 10-500 Hz) 10 cycles IEC 60068-2-6
Voltage 1 Speed 1	3994.66 rpm
Voltage 2	48 V
Voltage 2 Speed 2 Max	7000 rpm
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep Code	ENVPEP2011005EN
Pep Verification Date	2020-11-01
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	To coordinate and synchronize motion control with stepper, servo or burshless DC motor 70% of the time for 10 years.
Functional-unit Unit	Unit
Energy Consumption On Product Lifetime In Kwh	590.424
Energy Model - Installation [A5]	Electricity mix; AC; < 1kV; EU-27
Energy Model - End Of Life [C1-c4]	Electricity mix; AC; < 1kV; EU-27
Input/Output Type	4 signals (each be used as input or output)
Nbr. Of Units In Pkg.	1
Take-back	No
Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6]	289.2808
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]	734.66

Persona Type Names	End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Nominal Torque	0.26 N.m 24 V, 0.26 N.m 48 V
Protection Type	overload of output voltage, safe torque off, short circuit of the output voltage
Voltage State 0 Guaranteed	-3...4.5 V, -3...4.5 V
[Us] Rated Supply Voltage	24 V, 48 V
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.3 kg CO2 eq., 0.3086912621
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	23 kg CO2 eq., 23.4198058252
Local Data Status	Publishable
Return Indicator	N
Stock Policy	2
Serviceability	Yes
Field Service Division	IDIBS
Use Carbon Footprint	289.2808
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	No
Tier Id	2
Function Option Id	ADVANCED
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Centring Collar Diameter	40 mm
Coefficient 1 0	1.071 N.m
Coefficient M0 Max	4.2857E-06 N.m/rpm
Continuous Stall Torque	0.28 N.m
Curve Type	lin
Device Short Name	ILE
Feedback Type	BLDC encoder
Holding Brake	without
Motor Type	brushless DC motor
Mounting Support	flange
Network Type	DC
Number Of Motor Poles	6
Number Of Mounting Holes	4
Product Availability	Non-Stock - Not normally stocked in distribution facility
Range Of Product	Lexium integrated drive
Returnability	No
Second Shaft	without second shaft end
Shaft Diameter	8 mm
Shock Resistance	150 m/s² 1000 shocks IEC 60068-2-29
Software Version	EIME v5.8.1
Supply Voltage Limits	18-55.2 V
Total Lifecycle Carbon Footprint	313 kg CO2 eq.
Type Of Cooling	natural convection
Voltage 1	24 V
Voltage 1 Speed 1 Max	3994.66 rpm
Voltage 2 Speed 2	7000 rpm
Voltage State 1 Guaranteed	15...30 V
Winding Type	medium speed of rotation and medium torque
Database Version	2016-11
Pcr Version	PCR-ed3-EN-2015 04 02
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	10
Energy Model - Manufacturing [A1-a3]	Energy model used: Germany
Energy Model - Use [B6]	Electricity mix; AC; < 1kV; EU-27
Length Total	122 mm
Accuracy Error [Angular]	1 °
Package Weight(Lbs)	1.712 kg
Warranty (In Months)	18
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]	734.66
Customs Code	8501512040

Environment Attributes Main

Ambient Air Temperature For Storage	-25-70 °C, -25-70 °C
Take Back	No
China Rohs Regulation	X
Carbon Footprint	313.3236479126
Circularity Profile	ENVEOLI2011005EN
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Permissible Ambient Air Temperature Around The Device	105 °C power amplifier110 °C motor
Relative Humidity	15-85 % without condensation
Pep Verification Date	2020-11-01
Type Of Verification For The Pep	Independent internal review

Operating Altitude	<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Ambient Air Temperature For Operation	40-55 °C (with power derating of 2 % per °C)0-40 °C (without derating)
Environmental Disclosure	ENVPEP2011005EN
Ip Degree Of Protection	IP41 shaft bushing: conforming to IEC 60034-5IP54 total except shaft bushing: conforming to IEC 60034-5
Packaging Without Single Use Plastic	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Code	ENVPEP2011005EN
Pcr Version	PCR-ed3-EN-2015 04 02
