Schneider Electric ILE2E661PB1A0 Brushless DC Motor 122mm, 24-48V, EtherCAT, 6500 RPM, 1.4 kg

  • MPN: ILE2E661PB1A0
  • PPN: SCH-ILE2E661PB1A0
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $2005.54

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This brushless DC motor from Schneider Electric is engineered to provide reliable performance and precision in motion control applications. Operating at speeds up to 6500 RPM, it operates efficiently within a voltage range of 24-48V, making it versatile for various automation tasks. The integration of EtherCAT technology ensures seamless communication and control, enhancing its suitability for demanding automation environments. With a compact design measuring 122mm, this motor is an ideal choice for applications where space is limited, delivering both power and efficiency without compromise.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginBrazil, Germany

    Communications & Management Attributes

    Communication InterfaceEtherCAT, Integrated

    Physical Attributes

    Motor Flange Size66 mm
    Shaft Length25 mm

    Complementary Attributes

    Maximum Axial Force Fa30 N force pressure), 30 N tensile force)
    Maximum Radial Force Fr80 N
    Maximum Switching Current100 mA per output200 mA total
    Maximum Mechanical Speed6500 rpm, 7000 rpm
    Maximum Supply Current0.1 A power stage disabled)6.8 A 24 V3.8 A 48 V

    Important Information Attributes

    Persona Type IdsEU, OM, OM8
    Coefficient 1 1-0.0001648 N.m/rpm, -0.0001648 N.m/rpm
    Peak Stall Torque0.43 N.m 24 V, 0.43 N.m 48 V
    Supply Voltage Descriptionsingle phase 48 V DC, single phase 24 V DC
    Certificate AgencyTÜV, UL, cUL
    Carbon Footprint Of The Distribution Phase [A4]0.2152124854, 0.2 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0.0127602, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]289 kg CO2 eq., 289.2808
    Local Publishable Date2026-01-12
    Stocking FlagY
    Device TypeMotion - integrated drive
    TraceabilityYes
    Average Life Duration15 year(s)
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI2011005EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1901
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier2
    Function OptionAdvanced
    Market SegmentationIndustrial
    Associated Fuse Rating16 A
    Circle Diameter Of The Mounting Holes73.54 mm
    Coefficient M02.8571E-06 N.m/rpm
    Compatibility CodeILE
    Current Consumption7000 mA peak5500 mA maximum continuous
    Detent Torque0.08 N.m
    Electrical Connectionprinted circuit board connector
    Gear Box Typewithout
    MarkingCE
    Mounting Holes Diameter4.4 mm
    Network Number Of Phases1
    Nominal Speed4800 rpm 24 V6000 rpm 48 V
    Number Of Motor Stacks1
    Phasesingle phase
    Product Or Component Typemotion integrated drive
    Reduction Ratio1:1
    Rotor Inertia0.17 kg.cm²
    Service Life In Hours20000 h bearing
    Shaft Enduntapped
    Sizing ReferenceILE2_661_A0
    Speed Feedback Resolution12 points/turn
    Sustainable PackagingNo
    Transmission Rate100 Mbits
    Vibration Resistance20 m/s² 10-500 Hz) 10 cycles IEC 60068-2-6
    Voltage 1 Speed 13994.66 rpm
    Voltage 248 V
    Voltage 2 Speed 2 Max7000 rpm
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Pep CodeENVPEP2011005EN
    Pep Verification Date2020-11-01
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionTo coordinate and synchronize motion control with stepper, servo or burshless DC motor 70% of the time for 10 years.
    Functional-unit UnitUnit
    Energy Consumption On Product Lifetime In Kwh590.424
    Energy Model - Installation [A5]Electricity mix; AC; < 1kV; EU-27
    Energy Model - End Of Life [C1-c4]Electricity mix; AC; < 1kV; EU-27
    Input/Output Type4 signals (each be used as input or output)
    Nbr. Of Units In Pkg.1
    Take-backNo
    Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6]289.2808
    Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]734.66
    Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
    Nominal Torque0.26 N.m 24 V, 0.26 N.m 48 V
    Protection Typesafe torque off, short circuit of the output voltage, overload of output voltage
    Voltage State 0 Guaranteed-3...4.5 V, -3...4.5 V
    [Us] Rated Supply Voltage24 V, 48 V
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.2 kg CO2 eq., 0.2238682718
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]17 kg CO2 eq., 16.9844504854
    Local Data StatusPublishable
    Return IndicatorN
    Stock Policy2
    ServiceabilityYes
    Field Service DivisionIDIBS
    Use Carbon Footprint289.2808
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label5
    Without Single Use PlasticNo
    Tier Id2
    Function Option IdADVANCED
    Market Segmentation IdINDUSTRIAL
    Product Kit IdentifierN
    Centring Collar Diameter40 mm
    Coefficient 1 01.071 N.m
    Coefficient M0 Max4.2857E-06 N.m/rpm
    Continuous Stall Torque0.28 N.m
    Curve Typelin
    Device Short NameILE
    Feedback TypeBLDC encoder
    Holding Brakewithout
    Motor Typebrushless DC motor
    Mounting Supportflange
    Network TypeDC
    Number Of Motor Poles6
    Number Of Mounting Holes4
    Product AvailabilityNon-Stock - Not normally stocked in distribution facility
    Range Of ProductLexium integrated drive
    ReturnabilityNo
    Second Shaftwithout second shaft end
    Shaft Diameter8 mm
    Shock Resistance150 m/s² 1000 shocks IEC 60068-2-29
    Software VersionEIME v5.8.1
    Supply Voltage Limits18-55.2 V
    Total Lifecycle Carbon Footprint307 kg CO2 eq.
    Type Of Coolingnatural convection
    Voltage 124 V
    Voltage 1 Speed 1 Max3994.66 rpm
    Voltage 2 Speed 27000 rpm
    Voltage State 1 Guaranteed15...30 V
    Winding Typemedium speed of rotation and medium torque
    Database Version2016-11
    Pcr VersionPCR-ed3-EN-2015 04 02
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime In Y10
    Energy Model - Manufacturing [A1-a3]Energy model used: Germany
    Energy Model - Use [B6]Electricity mix; AC; < 1kV; EU-27

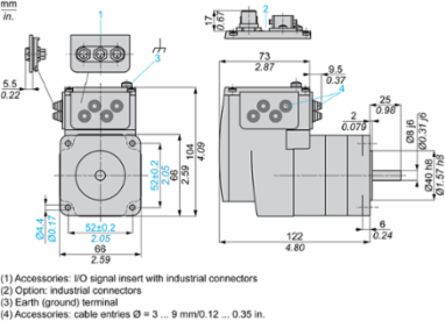

    Length Total122 mm
    Accuracy Error [Angular]1 °
    Package Weight(Lbs)1.668 kg
    Warranty (In Months)18
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]734.66
    Customs Code8501512040

    Environment Attributes Main

    Ambient Air Temperature For Storage-25-70 °C, -25-70 °C
    Take BackNo
    China Rohs RegulationX
    Carbon Footprint306.7170914427
    Circularity ProfileENVEOLI2011005EN
    Eu Rohs DirectiveCompliant By Exemption
    Packaging Made With Recycled CardboardYes
    Permissible Ambient Air Temperature Around The Device105 °C power amplifier110 °C motor
    Relative Humidity15-85 % without condensation
    Pep Verification Date2020-11-01
    Type Of Verification For The PepIndependent internal review
    Operating Altitude<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Ambient Air Temperature For Operation40-55 °C (with power derating of 2 % per °C)0-40 °C (without derating)
    Environmental DisclosureENVPEP2011005EN
    Ip Degree Of ProtectionIP41 shaft bushing: conforming to IEC 60034-5IP54 total except shaft bushing: conforming to IEC 60034-5
    Packaging Without Single Use PlasticNo
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep CodeENVPEP2011005EN
    Pcr VersionPCR-ed3-EN-2015 04 02

    General Attributes

    Phasesingle phase
    Range Of ProductLexium integrated drive
    Product Or Component Typemotion integrated drive

    ETIM

    ETIM 8EC001851
    ETIM 9EC001851

    Output Attributes

    Discrete Output Voltage23...25 V
    Nominal Output Power131 W 24 V163 W 48 V

    Contractual Warranty Attributes

    Warranty Period18 months
    Warranty18 months

    Input Attributes

    Discrete Input Current10-10 mA at 24 V on/STO_A safety input3-3 mA at 24 V on/STO_B safety input, 2-2 mA at 24 V 24 V signal interface
