Schneider Electric ILE2E661PC1A0 brushless DC motor, Lexium ILA ILE ILS, 24..48V- EtherCAT interface, L = 122mm, w/o gearbox
Schneider Electric ILE2E661PC1A0 brushless DC motor, Lexium ILA ILE ILS, 24..48V- EtherCAT interface, L = 122mm, w/o gearbox
- MPN: ILE2E661PC1A0
- PPN: SCH-ILE2E661PC1A0
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$2356.77/ EA
Description
brushless DC motor, Lexium ILA ILE ILS, 24..48V- EtherCAT interface, L = 122mm, w/o gearbox

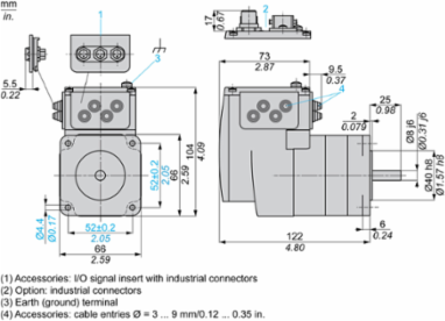

Specifications
Environment
- Product Certifications
- UL || cUL || TÜV
- Ambient Air Temperature For Operation
- 40-55 °C with power derating of 2 % per °C) || 0-40 °C without derating)
- Vibration Resistance
- 20 m/s² 10-500 Hz) 10 cycles IEC 60068-2-6
- Ambient Air Temperature For Storage
- -25-70 °C
- Ip Degree Of Protection
- IP41 shaft bushing: conforming to IEC 60034-5 || IP54 total except shaft bushing: conforming to IEC 60034-5
StandardsIEC 61800-3 || EN 61800-3:2001, second environment || IEC 60072-1 || IEC 61800-3, Ed 2 || IEC 50347 || EN 61800-3 : 2001-02 || IEC 50178
Shock Resistance150 m/s² 1000 shocks IEC 60068-2-29
Permissible Ambient Air Temperature Around The Device105 °C power amplifier || 110 °C motor
Relative Humidity15-85 % without condensation
Operating Altitude<= 1000 m without derating
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2011005EN
- Pvc Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- ENVEOLI2011005EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Circle Diameter Of The Mounting Holes
- 73.54 mm
- Maximum Mechanical Speed
- 7000 rpm || 6500 rpm
- Maximum Switching Current
- 100 mA per output || 200 mA total
- Mounting Support
- flange
- Rotor Inertia
- 0.17 kg.cm²
- Centring Collar Depth
- 2 mm
- Second Shaft
- without second shaft end
- Shaft Length
- 25 mm
- Voltage State 0 Guaranteed
- -3...4.5 V
- Motor Flange Size
- 66 mm
- Number Of Mounting Holes
- 4
- Nominal Output Power
- 131 W 24 V || 163 W 48 V
- Supply Voltage Limits
- 18-55.2 V
- Speed Feedback Resolution
- 12 points/turn
- Detent Torque
- 0.08 N.m
- Service Life In Hours
- 20000 h bearing
- Feedback Type
- BLDC encoder
- Transmission Rate
- 100 Mbits
- Input/Output Type
- 4 signals (each be used as input or output)
- Associated Fuse Rating
- 16 A
Current Consumption7000 mA peak || 5500 mA maximum continuous
Commissioning InterfaceRS485 Modbus TCP 9.6, 19.2 and 38.4 kbauds)
Maximum Radial Force Fr80 N
Number Of Motor Stacks1
Continuous Stall Torque0.28 N.m
Discrete Input Current10-10 mA at 24 V on/STO_A safety input || 3-3 mA at 24 V on/STO_B safety input || 2-2 mA at 24 V 24 V signal interface
MarkingCE
Net Weight1.4 kg
Centring Collar Diameter40 mm
Peak Stall Torque0.43 N.m 24 V || 0.43 N.m 48 V
Shaft Diameter8 mm
Discrete Output Voltage23...25 V
Mounting Holes Diameter4.4 mm
Maximum Supply Current0.1 A power stage disabled) || 6.8 A 24 V || 3.8 A 48 V
Type Of Coolingnatural convection
Shaft Enduntapped
Protection Typesafe torque off || overload of output voltage || short circuit of the output voltage
Accuracy Error+/- 0.5 °
Maximum Axial Force Fa30 N force pressure) || 30 N tensile force)
Voltage State 1 Guaranteed15...30 V
Specifications
- Range Of Product
- Lexium integrated drive
- Network Type
- DC
- Number Of Motor Poles
- 6
- Product Or Component Type
- motion integrated drive
- Length
- 122 mm
- Communication Interface
- EtherCAT, integrated
- Motor Type
- brushless DC motor
- Electrical Connection
- industrial connector
- Device Short Name
- ILE
Reduction Ratio1:1
Winding Typemedium speed of rotation and medium torque
Holding Brakewithout
Network Number Of Phasessingle phase
[Us] Rated Supply Voltage48 V || 24 V
Gear Box Typewithout
Nominal Speed4800 rpm 24 V || 6000 rpm 48 V
Nominal Torque0.26 N.m 24 V || 0.26 N.m 48 V
