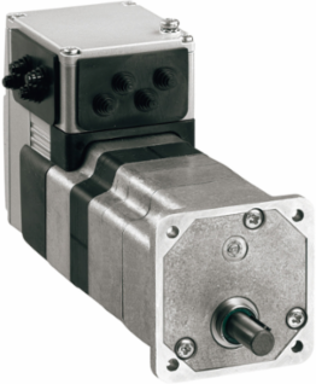

Schneider Electric ILE2E662PC1A0 Brushless DC Motor 24-48V, 140mm Length, EtherCAT Interface
Schneider Electric ILE2E662PC1A0 Brushless DC Motor 24-48V, 140mm Length, EtherCAT Interface
- MPN: ILE2E662PC1A0
- PPN: SCH-ILE2E662PC1A0
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$2373.23/ EA
Description
This brushless DC motor from Schneider Electric is designed to enhance motion control in automation applications, featuring an EtherCAT interface for seamless communication and integration. Operating at a voltage range of 24-48V and measuring 140mm in length, it provides precise performance and reliability, making it suitable for a variety of industrial environments. Ideal for demanding motion control tasks, this motor ensures efficient operation and durability, streamlining your automation processes with advanced technology.
Specifications
- Voltage
- 24 V, 48 V
- Nominal Torque
- 0.5 N.m (24 V, 48 V)
- Continuous Stall Torque
- 0.54 N.m
- Maximum Mechanical Speed
- 5000 rpm, 7000 rpm
- Maximum Axial Force
- 30 N
- Maximum Supply Current
- 7 A (48 V), 9.5 A (24 V)
- Supply Voltage Limits
- 18-55.2 V
- Phase
- Single phase
- Motor Type
- Brushless DC motor
- Reduction Ratio
- 1:1
- Speed Feedback Resolution
- 12 points/turn
- Rotor Inertia
- 0.34 kg.cm²

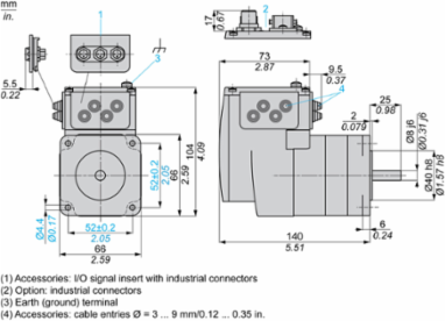

- Motor Flange Size
- 66 mm (2.60 in)
- Centring Collar Depth
- 2 mm (0.08 in)
- Mounting Holes Diameter
- 4.4 mm (0.17 in)
- Shaft Diameter
- 8 mm (0.31 in)
- Shaft End
- Untapped
- Net Weight
- 1.75 kg (3.86 lb)
- Protection Type
- Short circuit of the output voltage, Safe torque off, Overload of output voltage
- Standards
- IEC 61800-3 Ed 2, EN 61800-3:2001 second environment, IEC 50347, IEC 60072-1, IEC 50178
- Marking
- CE
- Ambient Air Temperature for Storage
- -25 to 70 °C
- Operating Altitude
- <= 1000 m without derating
- Vibration Resistance
- 20 m/s² (10-500 Hz), 10 cycles IEC 60068-2-6
- Communication Interface
- EtherCAT, integrated
- Input/Output Type
- 4 signals each can be input or output
- Device Short Name
- ILE
- Number of Motor Stacks
- 2
- Reach Regulation
- Contains Substances of Very High Concern above threshold
- Sustainable Offer Status
- Green Premium product
- Mercury Free
- Yes
- Eu Rohs Directive
- Pro-active compliance (Out of EU RoHS legal scope)
- Warranty
- 18 months
Nominal Speed3100 rpm (24 V), 5000 rpm (48 V)
Peak Stall Torque0.8 N.m (24 V, 48 V)
Nominal Output Power162 W (24 V), 262 W (48 V)
Maximum Radial Force80 N
Current Consumption7000 mA peak, 5500 mA maximum continuous
Associated Fuse Rating16 A
Number of Motor Poles6
Winding TypeMedium speed, medium torque
Gear BoxWithout
Holding BrakeWithout
Accuracy Error+/- 0.5°
Length140 mm
Centring Collar Diameter40 mm (1.57 in)
Number of Mounting Holes4
Circle Diameter of Mounting Holes73.54 mm (2.90 in)
Shaft Length25 mm (0.98 in)
Mounting SupportFlange
MaterialPVC Free
IP Degree of ProtectionShaft bushing IP41, total IP54 except shaft bushing
Product CertificationscUL, UL, TÜV
Ambient Air Temperature for Operation0-40 °C without derating, 40-55 °C with 2% per °C derating
Permissible Ambient Air Temperature Around Device105 °C power amplifier, 110 °C motor
Relative Humidity15-85% without condensation
Shock Resistance150 m/s², 1000 shocks IEC 60068-2-29
Feedback TypeBLDC encoder
Transmission Rate100 Mbits
Network TypeDC
Range Of ProductLexium integrated drive
Environmental DisclosureENVEOLI2011005EN
Pvc FreeYes
China Rohs RegulationX
Rohs Exemption InformationYes
Circularity ProfileENVEOLI2011005EN
