Schneider Electric ILE1R661PC1A0 brushless DC motor, Lexium ILA ILE ILS, 24 to 36V, RS485 interface, industrial connector, 122mm, without gearbox
Schneider Electric ILE1R661PC1A0 brushless DC motor, Lexium ILA ILE ILS, 24 to 36V, RS485 interface, industrial connector, 122mm, without gearbox
- MPN: ILE1R661PC1A0
- PPN: SCH-ILE1R661PC1A0
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$1830.40/ EA

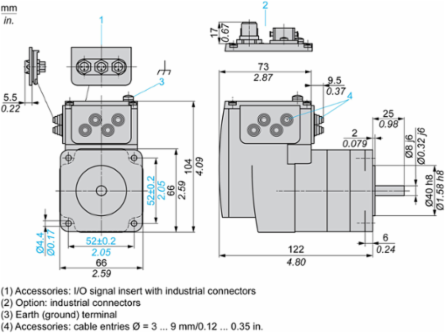

Description
brushless DC motor, Lexium ILA ILE ILS, 24 to 36V, RS485 interface, industrial connector, 122mm, without gearbox
Specifications
Environment
- Product Certifications
- cUL || TÜV || UL
- Ambient Air Temperature For Operation
- 50-65 °C with power derating of 2 % per °C) || 0-50 °C without derating)
- Vibration Resistance
- 20 m/s² 10-500 Hz) 10 cycles IEC 60068-2-6
- Ambient Air Temperature For Storage
- -25-70 °C
- Ip Degree Of Protection
- IP41 shaft bushing: conforming to IEC 60034-5 || IP54 total except shaft bushing: conforming to IEC 60034-5
StandardsIEC 61800-3, Ed 2 || EN 61800-3 : 2001-02 || IEC 61800-3 || IEC 60072-1 || IEC 50178 || EN 61800-3:2001, second environment || IEC 50347
Shock Resistance150 m/s² 1000 shocks IEC 60068-2-29
Permissible Ambient Air Temperature Around The Device105 °C power amplifier || 110 °C motor
Relative Humidity15-85 % without condensation
Operating Altitude<= 1000 m without derating
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2011005EN
- Pvc Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- ENVEOLI2011005EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Circle Diameter Of The Mounting Holes
- 73.54 mm
- Maximum Mechanical Speed
- 5000 rpm
- Maximum Radial Force Fr
- 80 N
- Number Of Motor Stacks
- 1
- Continuous Stall Torque
- 0.27 N.m
- Discrete Input Current
- 10-10 mA at 24 V on/STO_A safety input || 3-3 mA at 24 V on/STO_B safety input || 2-2 mA at 24 V 24 V signal interface
- Marking
- CE
- Net Weight
- 1.4 kg
- Centring Collar Diameter
- 40 mm
- Peak Stall Torque
- 0.26 N.m 24 V || 0.36 N.m 36 V
- Shaft Diameter
- 8 mm
- Discrete Output Voltage
- 23...25 V
- Mounting Holes Diameter
- 4.4 mm
- Maximum Supply Current
- 0.06 A 36 V power stage disabled) || 0.1 A 24 V power stage disabled) || 4.7 A 24 V || 5.1 A 36 V
- Type Of Cooling
- natural convection
- Shaft End
- untapped
- Protection Type
- short circuit of the output voltage || safe torque off || overload of output voltage
- Accuracy Error
- +/- 1 °
- Maximum Axial Force Fa
- 30 N force pressure) || 30 N tensile force)
- Voltage State 1 Guaranteed
- 15...30 V
Current Consumption7000 mA peak || 5500 mA maximum continuous
Maximum Switching Current100 mA per output || 200 mA total
Mounting Supportflange
Rotor Inertia0.149 kg.cm²
Centring Collar Depth2 mm
Second Shaftwithout second shaft end
Shaft Length25 mm
Voltage State 0 Guaranteed-3...4.5 V
Motor Flange Size66 mm
Number Of Mounting Holes4
Nominal Output Power117 W 36 V || 74 W 24 V
Supply Voltage Limits18-40 V
Speed Feedback Resolution12 points/turn
Detent Torque0.08 N.m
Service Life In Hours20000 h bearing
Feedback TypeBLDC encoder
Transmission Rate9.6, 19.2 and 38.4 kbauds
Input/Output Type4 signals (each be used as input or output)
Associated Fuse Rating10 A
Specifications
- Range Of Product
- Lexium integrated drive
- Network Type
- DC
- Number Of Motor Poles
- 6
- Product Or Component Type
- motion integrated drive
- Length
- 122 mm
- Communication Interface
- RS485, integrated
- Motor Type
- brushless DC motor
- Electrical Connection
- industrial connector
- Device Short Name
- ILE
Reduction Ratio1:1
Winding Typemedium speed of rotation and medium torque
Holding Brakewithout
Network Number Of Phasessingle phase
[Us] Rated Supply Voltage36 V || 24 V
Gear Box Typewithout
Nominal Speed4000 rpm 24 V || 4800 rpm 36 V
Nominal Torque0.175 N.m 24 V || 0.24 N.m 36 V
