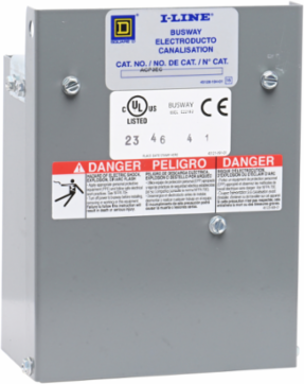

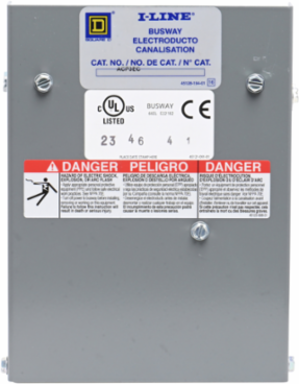

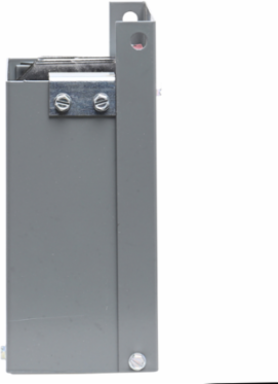

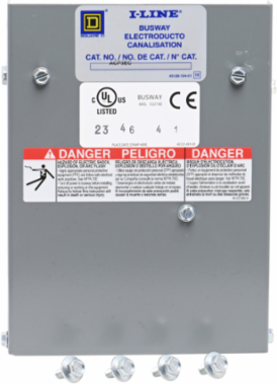

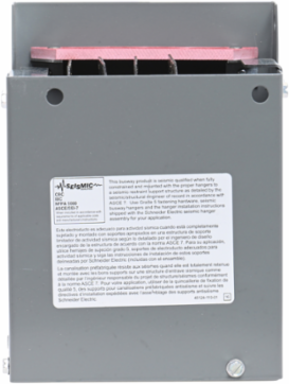

Square D ACP3EC End cap, I-Line Busway, 400A, 600VAC, 3 phase, 4 wire [TAA]
![End cap, I-Line Busway, 400A, 600VAC, 3 phase, 4 wire [TAA]](https://media.province-electric.com/228/schneider_synd_us_xlsx/medium/908748c620f0b374a27cd92530cec093f5b73fd8-medium.png)
![End cap, I-Line Busway, 400A, 600VAC, 3 phase, 4 wire [TAA]](https://media.province-electric.com/228/schneider_synd_us_xlsx/medium/c0e57aeaf7776064591cb7c8b9be9453be07cf97-medium.png)
![End cap, I-Line Busway, 400A, 600VAC, 3 phase, 4 wire [TAA]](https://media.province-electric.com/228/schneider_synd_us_xlsx/medium/1f683b4ccf6aa8fdb296e84e1950a1713ad75530-medium.png)
![End cap, I-Line Busway, 400A, 600VAC, 3 phase, 4 wire [TAA]](https://media.province-electric.com/228/schneider_synd_us_xlsx/medium/9566c6eba490d2ab88342400c497e545f3782d77-medium.png)
![End cap, I-Line Busway, 400A, 600VAC, 3 phase, 4 wire [TAA]](https://media.province-electric.com/228/schneider_synd_us_xlsx/medium/2a9fcfe38a334e40fa20ec5a3a002fac49245bdb-medium.png)
Square D ACP3EC End cap, I-Line Busway, 400A, 600VAC, 3 phase, 4 wire [TAA]
- MPN: ACP3EC
- UPC: 785901390640
- PPN: SCH-ACP3EC
- UNSPSC: 39131701
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$932.48/ EA
Description
I-Line™ Busway offers a complete line of compatible, sandwich-type feeder and plug-in busway lengths and fittings. I-Line plug-in busway has options from 225A to 600A with aluminum or copper conductors. I-Line busway is constructed with three pole and four pole full neutral configurations for system voltages to 600 volts. This end closure has a 600A 600 VAC rating with copper conductors and a 400A 600 VAC rating with aluminum conductors. End closure has a height of 6.1 inches, a width of 3.52 inches and a length of 3.95 inches. The end closure meets the UL 857 standard, the CSA C22.2 No 27 standard and the IEC 61439-6 standard.
Features
- Enhanced safety for personnel and equipment.
- Improved reliability by preventing contamination and corrosion.
- Cost-effective protection for long-term system performance.
- Seals busway ends to prevent dust, debris, and moisture ingress.
- This product is TAA, and BAA via COTS compliant.
Specifications
Conformance Attributes
- Standards
- UL 857, CSA C22.2 No 27:1994, IEC 61439-6
Important Information Attributes
- Persona Type Ids
- LC, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Product Destination
- busbar trunking 400-400 A aluminium/copper end caps, busbar trunking 600-600 A copper end caps
- Local Publishable Date
- 2025-11-18
- Scope Perimeter
- Outside of Europe
- ROHS EUR In Scope
- Yes
- ROHS EUR Full Compliance Status
- Compliant
- China ROHS In Scope
- No
- Without Single Use Plastic
- No
- Return Indicator
- Y
- Function Option
- Standard
- Package Weight Lbs
- 1.456 kg
- Product Or Component Type
- End Closure
- Returnability
- Yes
- Ue Rated Operational Voltage2
- 600 V AC/DC 50/60 Hz
- Stocking Flag
- Y
- Pep Code
- ENVPEP1407015EN
- Ue Rated Operational Voltage5
- 600 V AC/DC 50/60 Hz
Persona Type NamesContractor, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Legacy WEEE ScopeIn
EOLI Availability DisplayNo need of specific recycling operations
ROHS EUR StatusCompliant
ROHS EUR Full Compliance Status IdCOMPLIANT
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Energy Efficiency OptimizedFalse
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductI-Line
Sustainable PackagingNo
Medium DescEnd cap, I-Line Busway, 400A, 600VAC, 3 phase, 4 wire [TAA]
Product Kit IdentifierN
Global Commercial StatusCommercialised
Environment Attributes Main
- Take Back
- No, Nej
- EU ROHS Directive
- Compliant , Compliant
- Reach Free SHVC
- Yes
- Toxic Heavy Metal Free
- Yes
- Environmental Disclosure
- ENVPEP1407015EN
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP1407015EN
China ROHS RegulationProduct out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
ROHS Exemption InformationYes
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Made With Recycled CardboardYes
Reach Free Of SVHCYes
General Attributes
- Product Or Component Type
- End Closure
Range Of ProductI-Line
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Compliance
- TAA Compliant | BAA Compliant via COTS
