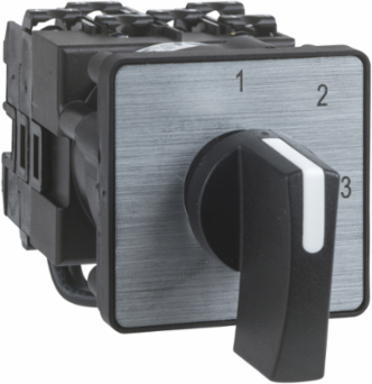

Schneider Electric K2H014ULH Harmony K Cam Changeover Switch, 4 Poles, 20A, 45x45mm, Multifixing
- MPN: K2H014ULH
- PPN: SCH-K2H014ULH
CAD
$117.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Engineered for versatility and reliability, the Schneider Electric K2H014ULH Harmony K Cam Changeover Switch features a robust four-pole design and a current rating of 20A. With its compact 45x45mm size and multifixing capabilities, this switch is perfectly suited for a variety of automation and control applications. Whether you're looking to enhance operational efficiency or ensure seamless control in your systems, this cam switch offers the performance and durability necessary for demanding environments. Its thoughtful design allows for easy integration, making it an essential component for modern control panels.
Documentation & Downloads
Specifications
Additional
- Amperage
- 20 A
- Short-Circuit Current
- 10,000 A
- Electrical Durability
- 200,000 cycles AC-23, AC-3; 600,000 cycles AC-15, AC-21
- Voltage Impulse Withstand
- 4 kV isolating function, 6 kV IEC 947-1
- Dimensions
- 45 x 45 x 107 mm (Width x Height x Depth)
- Fixing Mode
- multifixing
- Contact Operation
- slow-break
- Electrical Connection
- captive screw clamp terminals flexible 2 x 1.5 mm², solid 1 x 2.5 mm²
- Shock Resistance
- 30 gn IEC 68-2-27
- Electrical Shock Protection Class
- Class II IEC 536
- Product Certifications
- CSA, UL
- IP Degree of Protection
- IP40 IEC 60529
- Ambient Air Temperature for Storage
- -40 to 70 °C
- Range of Product
- Harmony K
- Cam Switch Function
- changeover switch
- Conventional Free Air Thermal Current
- 20 A
- Rotary Handle Padlocking
- without
- Toxic Heavy Metal Free
- yes
- Reach Regulation
- free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- yes
- Mercury Free
- yes
- Protective Treatment
- TC
- Return
- without
- Sustainable Offer Status
- Green Premium product
Conventional Enclosed Thermal Current16 A
Maximum Operating Rate2.5 cycles/min AC-21, AC-23, AC-3; 8.333 cycles/min AC-15
Rated Insulation Voltage690 V IEC 60947-1
Poles4P
Handle Size35 mm black handle
Switching PositionsRight 30°, Left 330° (2 positions, 30° switching angle)
Positive Openingwith
Mechanical Durability1,000,000 cycles
Vibration Resistance5 gn 10-150 Hz IEC 68-2-6
Material of Legendmetallic
StandardsIEC 60947-3, IEC 60947-5-1, CENELEC EN 50013
Ambient Air Temperature for Operation-25 to 55 °C
Net Weight0.195 kg
Product Mountingfront mounting
Cam Switch Head Typewith front plate 45 x 45 mm
Short-Circuit Protection20 A cartridge fuse gG
Presentation of Legendmetallic, black 1 - 2
Reach Free Of SVHCyes
WEEEEU disposal compliant
China RoHS RegulationCompliant
Warranty18 months
Off Positionwithout
Circularity ProfileN/A
