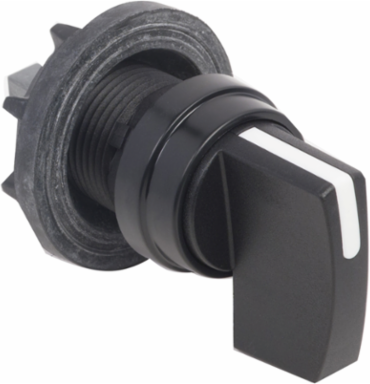

Schneider Electric KAA1H Cam Switch Operating Head, Harmony K1/K2, 29mm Bezel, IP65, Black Handle
- MPN: KAA1H
- PPN: SCH-KAA1H
CAD
$20.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
"This product is part of the Harmony K range, an offer of Ø 16-22mm rotary cam switches." "This cam switch operator head has black handle and 29mm plastic bezel with metallic finish." "It offers mechanical durability of about 1 million cycles. It is an IP65 rated product." "The cam switch operating head dimensions are 29mm (width) x 77mm (depth) x 38mm (height). It weighs 0.042kg." "It is ideal for oil and gas, food and beverage, packaging, kneading trough and vegetable cutting machine applications." "It is compatible with 12A and 20A front mounting bodies." "It is installed into a Ø 22mm panel cutout." "Modular rotary cam switches from 10A to 150A with plastic or metal heads meet most industrial applications."
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Czechia, France
Physical Attributes
- Cad Overall Depth
- 77 mm
- Cad Overall Width
- 29 mm
Cad Overall Height38 mm
Important Information Attributes
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI071103EN
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Cam Switch Head Type
- with bezel Ø 29 mm, plastic with metallic finish
- Component Name
- KAA
- Product Availability
- Stock - Normally stocked in distribution facility
- Protective Treatment
- TC
- Returnability
- Yes
- Shock Resistance
- 30 gn IEC 68-2-27
- Type Of Operator
- Black handle 35 mm
- Pep Code
- ENVPEP071103EN
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8538908180
Local Publishable Date2026-01-12
Stocking FlagN
Weee ScopeOut
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Product Kit IdentifierN
Compatibility CodeKAA
Mechanical Durability1000000 cycles
Product Or Component Typecam switch operating head
Range Of ProductHarmony Series K
Rotary Handle Padlockingwithout
Sustainable PackagingNo
Vibration Resistance5 gn 10-150 Hz)IEC 68-2-6
Length Total35 mm
Package Weight(Lbs)47.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-55 °C, -25-55 °C
- Ip Degree Of Protection
- IP65 conforming to IEC 529, IP65 conforming to NF C 20-010
- Reach Free Shvc
- Yes
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP071103EN
- Packaging Made With Recycled Cardboard
- No
- Product Compatibility
- front mounting bodies 12 and 20 A Ø 22 mm hole
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Take BackNo
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Circularity ProfileENVEOLI071103EN
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach Free Of SvhcYes
Pep CodeENVPEP071103EN
General Attributes
- Product Or Component Type
- cam switch operating head
Range Of ProductHarmony Series K
ETIM
- ETIM 8
- EC000222
ETIM 9EC000222
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Presentation Of Legend
- with mat black
