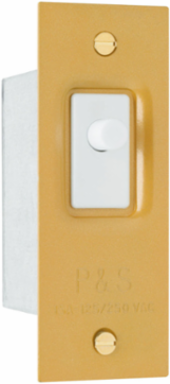

Pass & Seymour 1201 Canopy Switch

Canopy Switch

Pass & Seymour 1201 Canopy Switch

MPN: 1201
UPC: 785007120011
PPN: P-S-1201

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$68.52/ EA

Loading add to cart quantity...

Description

Canopy Switch

Features

Easily accessible break-off separate or common feed.
Long-life red neon lamp in pilot light rated 1/25 Watt, 125V.
Side wire #12 and #14 AWG.
Two devices fit into the space of one.
Grounding combination devices meet NEC Requirements.
Tamper-resistant version features dual mechanical shutter system to help prevent insertion of foreign objects.
For covering patents, see www.legrand.us/patents.

Specifications

Specifications

Depth: 1.344 in

Color: White

Finish: Matte

Country of Origin: Mexico

Special Features: Light ON, door CLOSED. Equipped with wire leads. Complete with metal box and plate. Only 14 oz. pressure actuates switch. Back box cold rolled steel. Plate is steel with bronze coating.

Voltage: 120 VAC

Voltage: 250 VAC

Number of Gangs: 1

Switch Type: Canopy

Indoor/Outdoor: Indoor

Load Type: Incandescent

Number of Switches: 1.0

Throw Type: Single Throw

Contact Configuration: N-O

Number of Poles: Single Pole

Connection Location: Side Only

Load Rating: 15 A @ 120/250 VAC

Wire Connection Type: Wire Terminal

Terminal Accommodation: #14 AWG - #12 AWG

Type: Switch

Load Type: LED

Height4.031 in

Width1.516 in

MaterialThermoplastic

Product LinePass & Seymour

Load TypeXenon

Amperage15.0 A

Load TypeHalogen

StandardUL Listed

Load TypeUniversal

Load TypeFluorescent

Mounting TypeWall Box

Wall Plate IncludedNo

Operating Cycles30000.0

Requires Neutral WireYes

Application SectorCommercial

Application SectorResidential

FeaturesPressure Sensitive Switch

Warranty Type1-Year Limited Warranty

Environmental ConditionsFlammability: UL94 V2

Load TypeCFL
