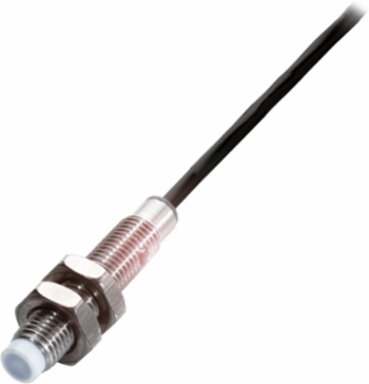

Balluff BCS M08T4E1-PSM30G-EP02 Capacitive Level Sensor, 0.1-3 mm Range, M8x1 Thread, PTFE Surface
- MPN: BCS M08T4E1-PSM30G-EP02
- PPN: BAL-BCS002H
CAD
$471.61
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
These capacitive sensors used for fill level detection detect the product, bulk material or liquids to be detected with their active surface in contact with the media. Their spherical electrical field effectively compensates for deposits on the sensing surface of the sensor.
Documentation & Downloads
Specifications
Additional
| Range | 0.1-3 mm |
|---|---|
| Operating Voltage | 11-30 VDC |
| Rated Operating Current | 50 mA |
| Voltage Drop | 2 V |
| Sensitivity | Switching distance adjustable |
| Hysteresis Max | 15 % |
| Temperature Drift Max | 15 % |
| Dimension | 8 x 42 mm |
| Installation | Non-flush |
| Tightening Torque | 6 Nm |
| Conductor Cross-section | 0.14 mm2 |
| Housing Material | Stainless Steel (1.4301) |
| Material Jacket | PUR |
| Polarity Reversal Protected | Yes |
| Protection Against Device Mix-ups | Yes |
| Compliance | CE, cULus, WEEE |
| Switching Frequency | 100 Hz |
|---|---|
| Rated Operating Voltage | 24 V DC |
| No-load Current | 10 mA |
| Ambient Temperature | -10 to 70 C |
| Switching Output | PNP Normally open (NO) |
| Repeat Accuracy Max | 2 % |
| MTTF (40 C) | 444 a |
| Thread Size | M8x1 |
| Connection | Cable, 2 m, PUR |
| Number of Conductors | 3 |
| Material Sensing Surface | PTFE |
| Cover Material | POM |
| Function Indicator | Yes |
| Short-circuit Protection | Yes |
| IP Rating | IP65 |
