Balluff

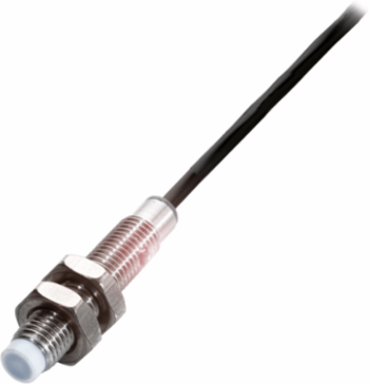

Balluff BCS M08T4E1-POM30G-EP02 Capacitive Level Sensor Ø 8 x 42 mm, PNP NC, IP65

Capacitive Level Sensor Ø 8 x 42 mm, PNP NC, IP65
  • MPN: BCS M08T4E1-POM30G-EP02
  • PPN: BAL-BCS002J

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$457.87/ EA

Description

These capacitive sensors used for fill level detection detect the product, bulk material or liquids to be detected with their active surface in contact with the media. Their spherical electrical field effectively compensates for deposits on the sensing surface of the sensor.

Specifications

Specifications

Dimension
Ø 8 x 42 mm
Thread (A)
M8x1
Connection
Cable, 2.00 m, PUR
Switching frequency
100 Hz
Sensitivity
Switching distance adjustable
Material sensing surface
PTFE
Operating voltage Ub
11-30 VDC
IP rating
IP65
SeriesM08
Installationnon-flush
Switching outputPNP Normally closed (NC)
Range0.1-3 mm
Housing materialStainless steel (1.4301)
Ambient temperature-10-70 °C
Approval/ConformityCE, cULus, WEEE
