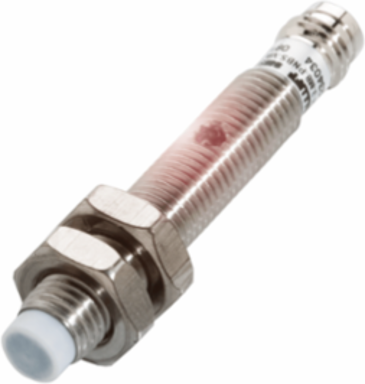

Balluff BCS M08T4E2-PSM30G-S49G Capacitive Level Sensor, M8 Thread, IP65, 0.1-3 mm Range
- MPN: BCS M08T4E2-PSM30G-S49G
- PPN: BAL-BCS002M
CAD
$464.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
These capacitive sensors used for fill level detection detect the product, bulk material or liquids to be detected with their active surface in contact with the media. Their spherical electrical field effectively compensates for deposits on the sensing surface of the sensor.
Documentation & Downloads
Specifications
Additional
- Switching Distance
- Adjustable
- Thread Size
- M8x1
- Installation
- Non-flush
- Housing Material
- Stainless steel (1.4301)
- Series
- M08
- Switching Output
- PNP Normally open (NO)
- Sensing Surface Material
- PTFE
- Measuring Range
- 0.1-3 mm
- Hysteresis
- 15 %
- Temperature Drift
- 15 %
- No-load Current
- 10 mA
- Ready Delay
- Max. 100 ms
- Short-circuit Protection
- Yes
Operating Voltage11-30 VDC
IP RatingIP65
ConnectionConnector, M8x1-Male, 3-pin
Switching Frequency100 Hz
ComplianceCE, cULus, WEEE
Ambient Temperature Range-10 to 70 0C
Dimensionsd8 8 x 54 mm
Rated Operating Distance3 mm
Repeat Accuracy2 %
Rated Operating Current50 mA
Voltage DropMax. 2 V
Polarity Reversal ProtectionYes
Tightening Torque6 Nm
