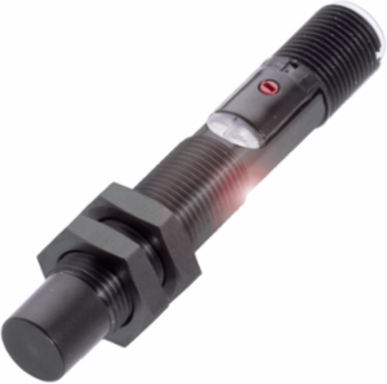

Balluff BCS M12BBE2-POC80H-S04K Capacitive Level Sensor, 1-8 mm Range, IP67, M12x1 Connector
- MPN: BCS M12BBE2-POC80H-S04K
- PPN: BAL-BCS00PP
CAD
$151.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
These capacitive sensors used for fill level detection detect the product, bulk material or liquids to be detected with their active surface in contact with the media. Their spherical electrical field effectively compensates for deposits on the sensing surface of the sensor.
Documentation & Downloads
Specifications
Additional
| Range | 1-8 mm |
|---|---|
| Switching output | PNP Normally closed (NC) |
| Dimension | 12 x 75 mm |
| Connection | Connector, M12x1-Male, 4-pin, A-coded |
| Material sensing surface | PBT |
| Ambient temperature | -25-85 C |
| Installation | non-flush |
| Sensitivity | Switching distance adjustable |
| Operating voltage | 10-30 VDC |
|---|---|
| Switching frequency | 100 Hz |
| Thread size | M12x1 |
| Housing material | PBT |
| IP rating | IP67 |
| Approval/Conformity | CE, cULus, WEEE |
| Series | M12 |
