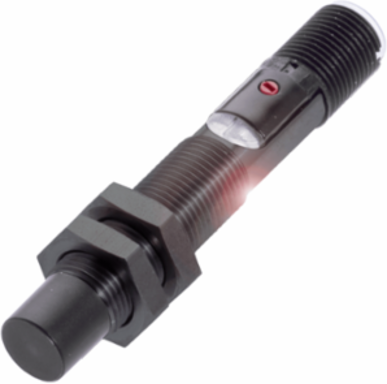

Balluff BCS M12BBE2-NSC80H-S04K Capacitive Level Sensor 12 x 75 mm, NPN NO, 10-30 VDC, IP67
- MPN: BCS M12BBE2-NSC80H-S04K
- PPN: BAL-BCS00PR
CAD
$208.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
These capacitive sensors used for fill level detection detect the product, bulk material or liquids to be detected with their active surface in contact with the media. Their spherical electrical field effectively compensates for deposits on the sensing surface of the sensor.
Documentation & Downloads
Specifications
Additional
| Operating Voltage | 10-30 VDC |
|---|---|
| Switching Frequency | 100 Hz |
| Thread Size | M12x1 |
| Dimension | d8 12 x 75 mm |
| Housing Material | PBT |
| IP Rating | IP67 |
| Sensitivity | Switching distance adjustable |
| Approval/Conformity | CE, cULus, WEEE, IEC 60947-5-2 |
| Switching Output | NPN Normally open (NO) |
|---|---|
| Measured Range | 1-8 mm |
| Installation | non-flush |
| Connection Type | Connector, M12x1-Male, 4-pin, A-coded |
| Material Sensing Surface | PBT |
| Ambient Temperature Range | -25 to 85 b0C |
| Series | M12 |
