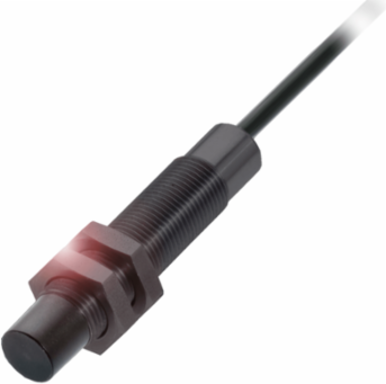

Balluff BCS M12BBG1-NSC80H-EP02 Capacitive Level Sensor, 12 x 61 mm, 1-8 mm Range, IP67
- MPN: BCS M12BBG1-NSC80H-EP02
- PPN: BAL-BCS00R2
CAD
$153.36
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
These capacitive sensors used for fill level detection detect the product, bulk material or liquids to be detected with their active surface in contact with the media. Their spherical electrical field effectively compensates for deposits on the sensing surface of the sensor.
Documentation & Downloads
Specifications
Additional
| Switching Frequency | 100 Hz |
|---|---|
| Operating Voltage | 10-30 VDC |
| Dimension | 12 x 61 mm |
| Connection | Cable, 2.00 m, PUR |
| Material Sensing Surface | PBT |
| Sensitivity | Switching distance adjustable |
| Installation | non-flush |
| Range | 1-8 mm |
|---|---|
| Switching Output | NPN Normally open (NO) |
| Thread Size | M12x1 |
| Housing Material | PBT |
| IP Rating | IP67 |
| Ambient Temperature Range | -25 to 85 0C |
| Approval/Conformity | CE, cULus, WEEE |
