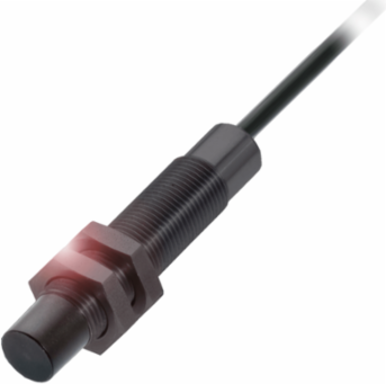

Balluff BCS M12BBG1-POC80H-EP02 Capacitive Level Sensor, M12 Thread, IP67, 12 x 61 mm
- MPN: BCS M12BBG1-POC80H-EP02
- PPN: BAL-BCS00R1
CAD
$211.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
These capacitive sensors used for fill level detection detect the product, bulk material or liquids to be detected with their active surface in contact with the media. Their spherical electrical field effectively compensates for deposits on the sensing surface of the sensor.
Documentation & Downloads
Specifications
Additional
| Operating Voltage | 10-30 VDC |
|---|---|
| Measuring Range | 1-8 mm |
| Size/Thread | M12x1 |
| Cable | 2 m, PUR |
| Material Sensing Surface | PBT |
| IP Rating | IP67 |
| Series | M12 |
| Switching Frequency | 100 Hz |
|---|---|
| Switching Output | PNP normally closed (NC) |
| Dimension | d8 12 x 61 mm |
| Material Housing | PBT |
| Installation Type | Non-flush |
| Compliance | CE, cULus, WEEE |
