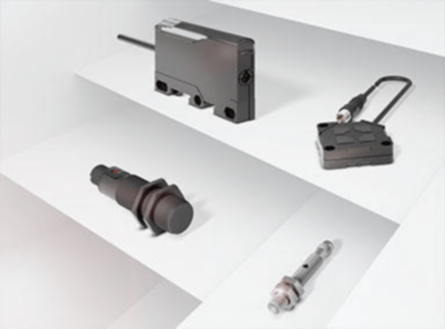

Balluff BCS M12TTG1-POM80G-EP00,5-GS49 Capacitive Level Sensor, Ø 12 x 50 mm, IP67, 1-8 mm Range
- MPN: BCS M12TTG1-POM80G-EP00,5-GS49
- PPN: BAL-BCS0110
CAD
$413.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
These capacitive sensors used for fill level detection detect the product, bulk material or liquids to be detected with their active surface in contact with the media. Their spherical electrical field effectively compensates for deposits on the sensing surface of the sensor.
Documentation & Downloads
Specifications
Additional
- Switching Frequency
- 100 Hz
- Rated Operating Distance
- 8 mm
- Connection
- Cable with connector, M8x1 Male, 3-pin, 0.5 m, PUR cable
- Dimension
- Ø 12 x 50 mm
- Installation
- Non-flush
- Material Sensing Surface
- PTFE
- Compliance
- CE, WEEE
Measuring Range1-8 mm
Operating Voltage12-35 VDC
Thread SizeM12x1
Ambient Temperature Range-30 to 70 °C
Housing MaterialPTFE
IP RatingIP67
SeriesM12
