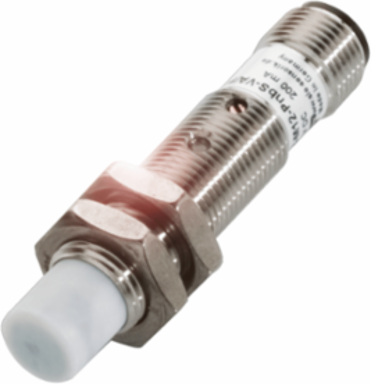

Balluff BCS M12T4D2-PSM80G-S04G Capacitive Level Sensor, 12 x 60 mm, IP65, 12-35 VDC
- MPN: BCS M12T4D2-PSM80G-S04G
- PPN: BAL-BCS0062
CAD
$392.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
These capacitive sensors used for fill level detection detect the product, bulk material or liquids to be detected with their active surface in contact with the media. Their spherical electrical field effectively compensates for deposits on the sensing surface of the sensor.
Documentation & Downloads
Specifications
Additional
| Operating Voltage | 12-35 VDC |
|---|---|
| Switching Frequency | 100 Hz |
| Voltage Drop Max | 1.5 V |
| Rated Operating Distance | 8 mm |
| Hysteresis Max | 15 % |
| Switching Output | PNP Normally open (NO) |
| Ambient Temperature Range | -30 to 70 C |
| Dimensions | 12 x 60 mm |
| Length | 60 mm |
| Tightening Torque | 40 Nm |
| Material - Housing | Stainless steel (1.4301) |
| Material - Cover | PA |
| Series | M12 |
| Operating Current | 200 mA |
|---|---|
| Rated Insulation Voltage | 75 V DC |
| Measuring Range | 1-8 mm |
| Repeat Accuracy Max | 2 % |
| Temperature Drift Max | 15 % |
| Sensitivity | Switching distance adjustable |
| IP Rating | IP65 |
| Diameter | 12 mm |
| Thread Size | M12x1 |
| Connection Type | Connector, M12x1-Male, 4-pin |
| Material - Sensing Surface | PTFE |
| Installation | non-flush |
| Compliance | CE, cULus, WEEE |
