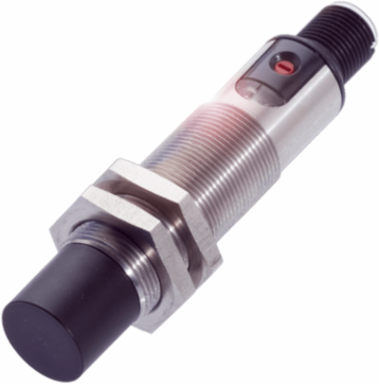

Balluff BCS M18B4G2-PSC15H-S04K Capacitive Level Sensor, M18x1 Thread, IP67, 2-15 mm Range
- MPN: BCS M18B4G2-PSC15H-S04K
- PPN: BAL-BCS00ME
CAD
$190.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
These capacitive sensors used for fill level detection detect the product, bulk material or liquids to be detected with their active surface in contact with the media. Their spherical electrical field effectively compensates for deposits on the sensing surface of the sensor.
Documentation & Downloads
Specifications
Additional
| Operating Voltage | 10-30 VDC |
|---|---|
| IP Rating | IP67 |
| Range | 2-15 mm |
| Dimension | 18 x 88.5 mm |
| Material Sensing Surface | PBT |
| Connection | Connector, M12x1 Male, 4-pin |
| Sensitivity | Switching distance adjustable |
| Approval/Conformity | CE, cULus, WEEE |
| Switching Frequency | 100 Hz |
|---|---|
| Thread Size | M18x1 |
| Ambient Temperature Range | -25 to 85 C |
| Housing Material | Stainless steel (1.4305) |
| Switching Output | PNP Normally open (NO) |
| Series | M18 |
| Installation | non-flush |
