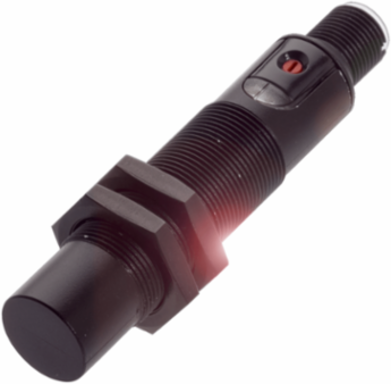

Balluff BCS M18BBG2-NSC15H-S04K Capacitive Level Sensor 18 x 88.5 mm, IP67, NPN NO, 10-30 VDC
- MPN: BCS M18BBG2-NSC15H-S04K
- PPN: BAL-BCS00LU
CAD
$162.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
These capacitive sensors used for fill level detection detect the product, bulk material or liquids to be detected with their active surface in contact with the media. Their spherical electrical field effectively compensates for deposits on the sensing surface of the sensor.
Documentation & Downloads
Specifications
Additional
| Switching Output | NPN Normally open (NO) |
|---|---|
| Operating Voltage | 10-30 VDC |
| Rated Operating Current | 100 mA |
| Voltage Drop Static Max. | 1.5 V |
| Measuring Range | 2 to 15 mm |
| Hysteresis Max. | 15 % |
| Temperature Drift Max. | 20 % [-5 to 55 C] |
| Thread Size | M18x1 |
| Housing Material | PBT |
| Material Cover | PBT, PA |
| Approval/Conformity | CE, cULus, WEEE |
| Installation | non-flush |
| Series | M18 |
| Function Indicator | Yes |
| Polarity Reversal Protected | Yes |
| Switching Frequency | 100 Hz |
|---|---|
| Voltage Rated Operating Voltage | 24 V DC |
| Rated Insulation Voltage | 75 V DC |
| No-load Current | 13 mA |
| Rated Operating Distance | 15 mm |
| Repeat Accuracy Max. | 2 % |
| Dimension | 18 x 88.5 mm |
| Connection | M12x1-Male, 4-pin |
| Material Sensing Surface | PBT |
| IP Rating | IP67 |
| Ambient Temperature | -25 to 85 C |
| Sensitivity | Switching distance adjustable |
| Tightening Torque | 2 Nm |
| Power Indicator | Yes |
| Short-circuit Protection | Yes |
