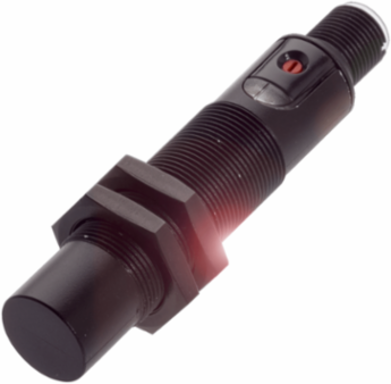

Balluff BCS M18BBG2-NOC15H-S04K Capacitive Level Sensor, M18x1 Thread, IP67, Range 2-15 mm
- MPN: BCS M18BBG2-NOC15H-S04K
- PPN: BAL-BCS00LW
CAD
$162.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
These capacitive sensors used for fill level detection detect the product, bulk material or liquids to be detected with their active surface in contact with the media. Their spherical electrical field effectively compensates for deposits on the sensing surface of the sensor.
Documentation & Downloads
Specifications
Additional
| Switching Frequency | 100 Hz |
|---|---|
| Operating Voltage | 10-30 VDC |
| IP Rating | IP67 |
| Size | M18x1 |
| Dimension | 18 x 88.5 mm |
| Installation | non-flush |
| Material Sensing Surface | PBT |
| Material Cover | PBT, PA |
| Approval/Conformity | CE, cULus, WEEE |
| Range | 2-15 mm |
|---|---|
| Switching Output | NPN Normally closed (NC) |
| Ambient Temperature | -25-85 C |
| Thread Size | M18x1 |
| Connection | Connector, M12x1-Male, 4-pin |
| Sensitivity | Switching distance adjustable |
| Housing Material | PBT |
| Series | M18 |
