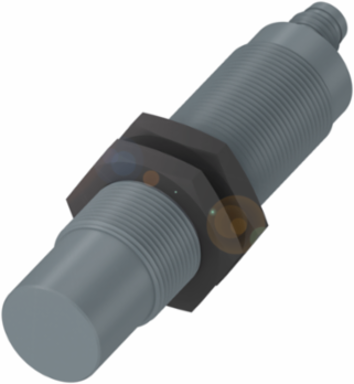

Balluff BCS M18VVN-POCFAG-S49G Capacitive Level Sensor 18 x 70 mm PVC, PNP NC, IP66, -10-60 C
- MPN: BCS M18VVN-POCFAG-S49G
- PPN: BAL-BCS008U
CAD
$336.56
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
These capacitive sensors used for fill level detection detect the product, bulk material or liquids to be detected with their active surface in contact with the media. Their spherical electrical field effectively compensates for deposits on the sensing surface of the sensor.
Documentation & Downloads
Specifications
Additional
| Switching output | PNP Normally closed (NC) |
|---|---|
| Switching frequency | 2 Hz |
| Housing material | PVC |
| Thread size | M18x1 |
| Installation | Non-flush |
| IP rating | IP66 |
| Approval/Conformity | CE, cULus, WEEE |
| Function | Smart Level 15 |
| Operating voltage | 10-35 VDC |
|---|---|
| Material sensing surface | PVC |
| Dimension | 18 mm diameter x 70 mm length |
| Connection | Connector, M8x1-Male, 3-pin |
| Ambient temperature | -10 to 60 C |
| Additional features | Electrically conductive media, Foam and residue compensation |
| Series | M18 |
| Sensitivity | Media-dependent, adjustable |
