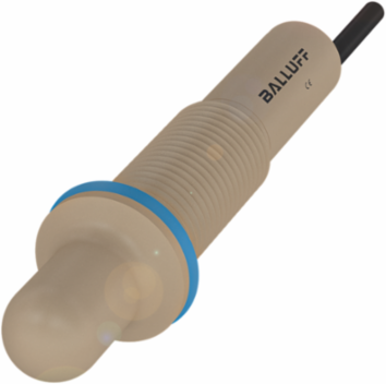

Balluff BCS S30KK01-GPSFHF-EV05 Capacitive Level Sensor, 18 x 76 mm, PEEK, IP68, 5 Hz
- MPN: BCS S30KK01-GPSFHF-EV05
- PPN: BAL-BCS018T
CAD
$454.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
These capacitive sensors used for fill level detection detect the product, bulk material or liquids to be detected with their active surface in contact with the media. Their spherical electrical field effectively compensates for deposits on the sensing surface of the sensor.
Documentation & Downloads
Specifications
Additional
| Switching Frequency | 5 Hz |
|---|---|
| Switching Output | PNP/NPN NO/NC |
| Dimension | d8 18 x 76 mm |
| Ambient Temperature | -10 to 105 b0C |
| Housing Material | PEEK |
| Approval/Conformity | CE, WEEE, FDA compliant |
| Installation | non-flush |
| Operating Voltage | 18-30 VDC |
|---|---|
| Thread Size | G 1/4" |
| Connection | Cable, 3-pin, 5 m, PVC |
| Material Sensing Surface | PEEK |
| IP Rating | IP68 |
| Sensitivity | media-dependent, adjustable |
