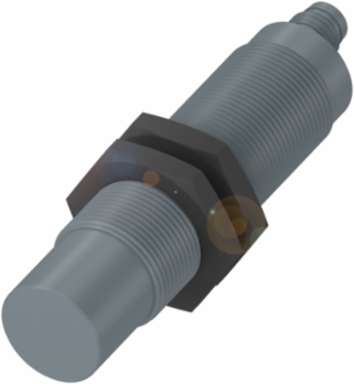

Balluff BCS M18VVN-PSCFAG-S49G Capacitive Level Sensor Ø 18 x 70 mm, PNP NO, IP66, PVC Housing
Balluff BCS M18VVN-PSCFAG-S49G Capacitive Level Sensor Ø 18 x 70 mm, PNP NO, IP66, PVC Housing
- MPN: BCS M18VVN-PSCFAG-S49G
- PPN: BAL-BCS008T
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$326.74/ EA
Description
The Balluff BCS M18VVN-PSCFAG-S49G Capacitive Level Sensor is engineered for precision and reliability in a variety of industrial applications. With a robust design featuring a diameter of 18 mm and a length of 70 mm, this sensor is rated IP66 for exceptional protection against dust and water, making it suitable for challenging environments. It operates within a temperature range of -10 to 60 °C and offers a PNP normally open switching output, capable of a switching frequency of 2 Hz. The adjustable sensitivity ensures optimal performance with various media types, while the PVC housing and sensing surface provide durability and ease of installation. This sensor is compliant with multiple industry standards, ensuring its reliability and effectiveness in your automation processes.
Specifications
Specifications
- Country of Origin
- Germany
- Series
- M18
- Installation
- non-flush
- Switching output
- PNP Normally open (NO)
- Sensitivity
- media-dependent, adjustable
- Additional features
- Electrically conductive media; Foam and residue compensation
- Material sensing surface
- PVC
- Operating voltage Ub
- 10...35 VDC
- IP rating per IEC 60529
- IP66
DimensionØ 18 x 70 mm
Thread (A)M18x1
ConnectionConnector, M8x1-Male, 3-pin
Switching frequency2 Hz
FunctionSmart Level 15
Housing materialPVC
Ambient temperature-10...60 °C
Approval/ConformityCE; cULus; WEEE
