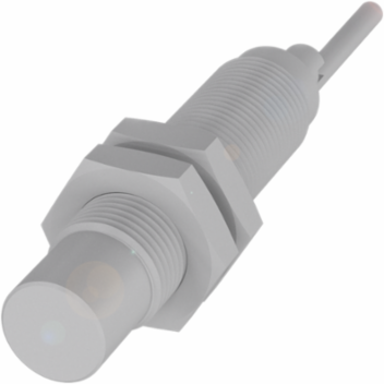

Balluff BCS M12TTG1-PSM80G-ET02 Capacitive Level Sensor 12mm Diameter, IP65, PTFE, Adjustable Sensitivity
Balluff BCS M12TTG1-PSM80G-ET02 Capacitive Level Sensor 12mm Diameter, IP65, PTFE, Adjustable Sensitivity
- MPN: BCS M12TTG1-PSM80G-ET02
- PPN: BAL-BCS006Z
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$424.52/ EA
Description
Designed for precision and reliability, the Balluff capacitive level sensor is an essential component for various industrial applications. With an adjustable sensing range of 1 to 8 mm, this sensor is capable of detecting a wide range of materials, making it versatile for different environments. The M12 threaded design ensures easy installation, while its robust PTFE housing and sensing surface provide excellent durability and resistance to harsh conditions, achieving an IP65 rating for protection against dust and water. Operating within a voltage range of 12 to 35 VDC and capable of withstanding temperatures from -30 to 70 °C, this sensor is engineered to perform consistently, ensuring efficient operation in demanding settings.
Specifications
Specifications
- Country of Origin
- Germany
- Series
- M12
- Installation
- non-flush
- Switching output
- PNP Normally open (NO)
- Range
- 1...8 mm
- Housing material
- PTFE
- Ambient temperature
- -30...70 °C
- Approval/Conformity
- CE; cULus; WEEE
DimensionØ 12 x 53 mm
Thread (A)M12x1
ConnectionCable, 2.00 m, PTFE
Switching frequency100 Hz
SensitivitySwitching distance adjustable
Material sensing surfacePTFE
Operating voltage Ub12...35 VDC
IP rating per IEC 60529IP65
