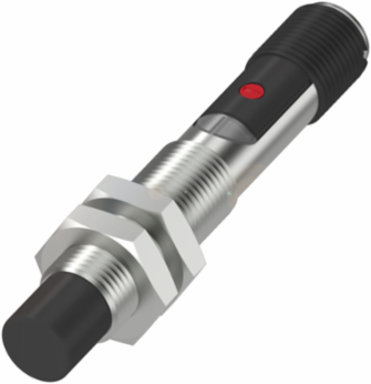

Balluff BCS M12B4E2-PSC80H-S04K Capacitive Level Sensor 12 x 75 mm, PNP NO, IP67, 1...8 mm Range
- MPN: BCS M12B4E2-PSC80H-S04K
- PPN: BAL-BCS00P4
CAD
$204.26
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Balluff capacitive level sensor is designed for precision and reliability in various industrial applications. With a compact 12 x 75 mm profile and an IP67 rating, this sensor is well-suited for environments that require protection against dust and water ingress. Operating within a voltage range of 10 to 30 VDC, it features a PNP normally open output and an adjustable sensitivity, allowing for versatile installation options. Constructed with a durable stainless steel housing and a PBT sensing surface, it can withstand ambient temperatures from -25 to 85 C, making it an excellent choice for demanding conditions.
Documentation & Downloads
Specifications
Additional
| Operating Voltage | 10...30 VDC |
|---|---|
| Switching Frequency | 100 Hz |
| Length | 75 mm |
| Thread Size | M12x1 |
| Installation | non-flush |
| Housing Material | 1.4305 stainless steel |
| Temperature Range | -25...85 C |
| Country of Origin | Hungary |
| Output Type | PNP Normally Open |
|---|---|
| Sensing Range | 1...8 mm |
| Diameter | 12 mm |
| Connection | Connector, M12x1-Male, 3-pin |
| Material Sensing Surface | PBT |
| IP Rating | IP67 |
| Approval/Conformity | CE; UKCA; cULus; WEEE |
| Series | M12 |
