Balluff BCS M18T4G2-PSC15G-S04G Capacitive Level Sensor Ø 18 x 75 mm, PNP NO, IP67, PTFE
Balluff BCS M18T4G2-PSC15G-S04G Capacitive Level Sensor Ø 18 x 75 mm, PNP NO, IP67, PTFE
- MPN: BCS M18T4G2-PSC15G-S04G
- PPN: BAL-BCS006A
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$310.03/ EA
Description

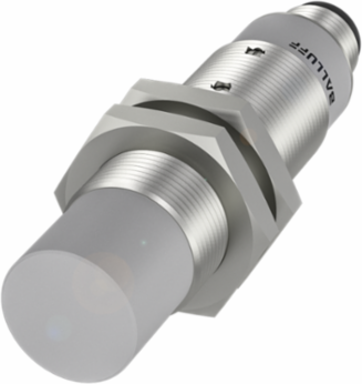

The Balluff capacitive level sensor is designed for precision and reliability in various industrial applications. With a compact dimension of Ø 18 x 75 mm, this sensor features a robust PTFE sensing surface, ensuring durability and effective performance even in challenging environments. Operating within a wide temperature range of -30 to 70 °C and offering an adjustable switching distance of 2 to 15 mm, it provides exceptional versatility. The sensor's PNP normally open output and IP67 rating make it suitable for harsh conditions, while its stainless steel housing adds to its longevity. Ideal for non-flush installation, this sensor is a dependable choice for monitoring levels in diverse applications.
Specifications
Specifications
- Country of Origin
- Germany
- Series
- M18
- Installation
- non-flush
- Switching output
- PNP Normally open (NO)
- Range
- 2...15 mm
- Housing material
- 1.4301 stainless steel
- Ambient temperature
- -30...70 °C
- Approval/Conformity
- CE; cULus; WEEE
DimensionØ 18 x 75 mm
Thread (A)M18x1
ConnectionConnector, M12x1-Male, 4-pin
Switching frequency100 Hz
SensitivitySwitching distance adjustable
Material sensing surfacePTFE
Operating voltage Ub10...35 VDC
IP rating per IEC 60529IP67
