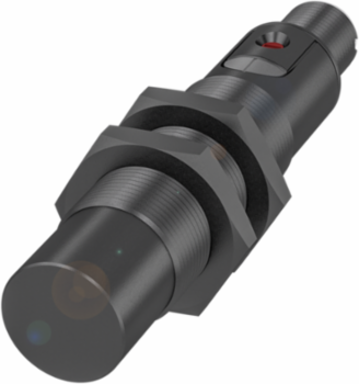

Balluff BCS M18BBG2-POC15H-S04K Capacitive Level Sensor 18 mm Ø, 2-15 mm Range, PBT Housing, IP67
- MPN: BCS M18BBG2-POC15H-S04K
- PPN: BAL-BCS00LT
CAD
$162.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
The Balluff capacitive level sensor is designed for precise and reliable measurement in a variety of industrial applications. With a compact dimension of Ø 18 x 88.5 mm, this sensor features a sensing range of 2 to 15 mm and operates effectively within an ambient temperature range of -25 to 85 °C. Constructed from durable PBT material and rated IP67 for protection against dust and water, it ensures consistent performance in challenging environments. The sensor's adjustable switching distance and PNP normally closed output make it a versatile choice for various installations, while its M12x1 connector allows for easy integration into existing systems.
Documentation & Downloads
Specifications
Additional
- Operating Voltage
- 10...30 VDC
- Sensing Range
- 2...15 mm
- Diameter
- 18 mm
- Thread Size
- M18x1
- Housing Material
- PBT
- IP Rating
- IP67
- Approval/Conformity
- CE; UKCA; cULus; WEEE
- Sensitivity
- Switching distance adjustable
- Country of Origin
- Hungary
Switching Frequency100 Hz
Switching OutputPNP Normally closed (NC)
Length88.5 mm
ConnectionConnector, M12x1-Male, 4-pin
Material Sensing SurfacePBT
Ambient Temperature Range-25...85 °C
Installationnon-flush
SeriesM18
