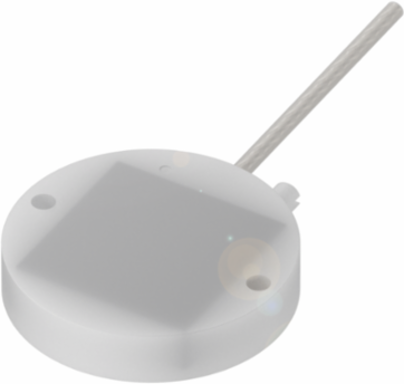

Balluff BCS D50TT05-NOCFAC-ET02 Capacitive Level Sensor Ø 50 x 10 mm IP67, NPN NC, 10-35 VDC
- MPN: BCS D50TT05-NOCFAC-ET02
- PPN: BAL-BCS0083
CAD
$420.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
These capacitive sensors used for fill level detection detect the product, bulk material or liquids to be detected through glass and plastic walls with their active surface and without contact.
Documentation & Downloads
Specifications
Additional
- Function
- Smart Level 15
- Rated Operating Current
- 300 mA
- Voltage Drop Max
- 1.8 V
- Ambient Temperature Range
- -10 to 60 °C
- Material Housing
- PTFE
- Material Jacket
- PTFE
- Installation
- Flush with container outer wall
- Connection
- Cable, PTFE
- Conductor Cross-Section
- 0.20 mm²
- Short-Circuit Protection
- Yes
- Series
- D50
Operating Voltage10-35 VDC
Switching Frequency2 Hz
Ripple Max10% of Ue
SizeØ 50 x 10 mm
Material Sensing SurfacePTFE
IP RatingIP67
Output TypeNPN normally closed (NC)
Number of Conductors3
Polarity Reversal ProtectionYes
Basic StandardIEC 60947-5-2
Additional FeaturesElectrically conductive media, Foam and residue compensation
