Balluff

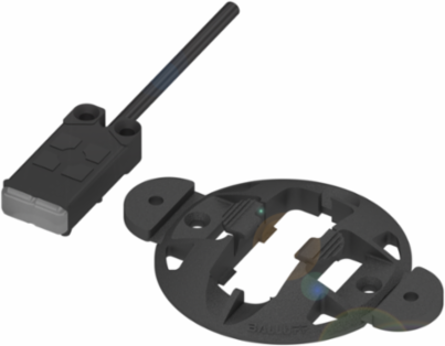

Balluff BCS R08RRE-PSMFHC-EP02 Capacitive Level Sensor, 34 x 16 x 8 mm, 12-30 VDC

Capacitive Level Sensor, 34 x 16 x 8 mm, 12-30 VDC
  • MPN: BCS R08RRE-PSMFHC-EP02
  • PPN: BAL-BCS012H

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$295.25/ EA

Specifications

Specifications

Country of Origin
Hungary
Series
R08
Connection
Cable, 2.00 m, PUR
Switching frequency
10 Hz
Function
Smart Level 50
Housing material
PP
Ambient temperature
-25...70 °C
Approval/Conformity
CE; UKCA; cULus; WEEE
Dimension34 x 16 x 8 mm
Installationflush with container outer wall
Switching outputPNP Normally open (NO)
Sensitivityteachable depending on media
Additional featuresElectrically conductive media; Foam and residue compensation
Material sensing surfacePP
Operating voltage Ub12...30 VDC
IP rating per IEC 60529IP67
