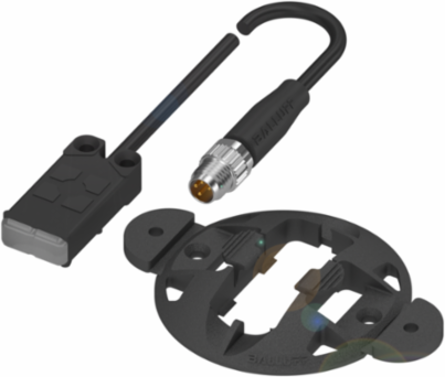

Balluff BCS R08RRE-PSMFHC-EP00,3-GS75 Capacitive level sensors without media contact - BCS012Z

Capacitive level sensors without media contact - BCS012Z

Balluff BCS R08RRE-PSMFHC-EP00,3-GS75 Capacitive level sensors without media contact - BCS012Z

MPN: BCS R08RRE-PSMFHC-EP00,3-GS75
PPN: BAL-BCS012Z

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$305.74/ EA

Loading add to cart quantity...

Description

Capacitive level sensors without media contact - BCS012Z

Specifications

Specifications

Country of Origin: Hungary

Series: R08

Connection: Cable with connector, M8x1-Male, 4-pin, 0.30 m, PUR

Switching frequency: 10 Hz

Function: Smart Level 50

Housing material: PP

Ambient temperature: -25...70 °C

Approval/Conformity: cULus; CE; UKCA; WEEE

Dimension34 x 16 x 8 mm

Installationflush with container outer wall

Switching outputPNP Normally open (NO)

Sensitivityteachable depending on media

Additional featuresElectrically conductive media; Foam and residue compensation

Material sensing surfacePP

Operating voltage Ub12...30 VDC

IP rating per IEC 60529IP67
