Balluff

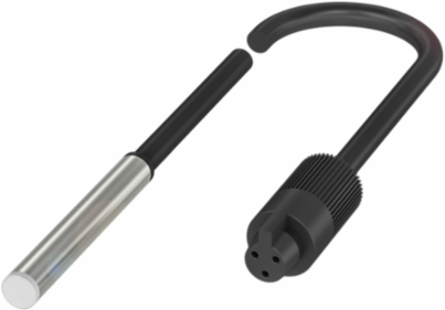

Balluff BCS G04T4D-XXS10C-EP02-GZ01-002 Capacitive sensor heads for amplifiers - BCS0010

Capacitive sensor heads for amplifiers - BCS0010
  • MPN: BCS G04T4D-XXS10C-EP02-GZ01-002
  • PPN: BAL-BCS0010

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$389.43/ EA

Description

Capacitive sensor heads for amplifiers - BCS0010

Specifications

Specifications

Country of Origin
Germany
Series
G04
Connection
Cable with connector, Snap-In IP40, Binder 719-Female, 2.00 m, PUR
Range
0.1...1 mm
Housing material
1.4301 stainless steel
Ambient temperature
-10...70 °C
IP rating per IEC 60529
IP67
DimensionØ 4 x 29 mm
Installationfor flush mounting
InterfaceSpecial interface
Sensitivityadjustable on base unit
Material sensing surfacePTFE
Approval/ConformityCE; cULus; WEEE
