Balluff BCS G10T4B-XXS40C-EP02-GZ01-002 Capacitive Sensor Head, Ø 10 x 20 mm, 0.1...4 mm Range, IP67
Balluff BCS G10T4B-XXS40C-EP02-GZ01-002 Capacitive Sensor Head, Ø 10 x 20 mm, 0.1...4 mm Range, IP67
- MPN: BCS G10T4B-XXS40C-EP02-GZ01-002
- PPN: BAL-BCS0016
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$270.34/ EA
Description

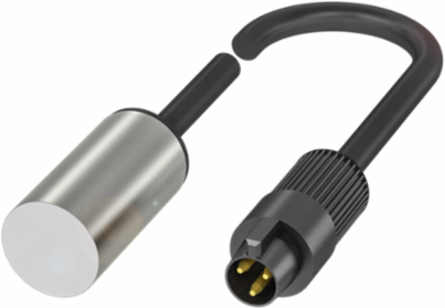

The Balluff capacitive sensor head is engineered for precision and reliability, featuring a compact design with a diameter of 10 mm and a length of 20 mm. With adjustable sensitivity and a sensing range of 0.1 to 4 mm, this sensor is versatile enough to adapt to various applications while ensuring optimal performance in challenging environments, thanks to its IP67 rating. Constructed from durable stainless steel and equipped with a PTFE sensing surface, it is designed for flush mounting and can operate effectively in ambient temperatures ranging from -30 to 80 °C. This German-manufactured sensor is not only compliant with CE and cULus standards but also offers a robust connection through a special cable with a connector, making it a reliable choice for industrial applications.
Specifications
Specifications
- Country of Origin
- Germany
- Series
- G10
- Connection
- Cable with connector, Special connector-Special connector, 2.00 m, PUR
- Range
- 0.1...4 mm
- Housing material
- 1.4301 stainless steel
- Ambient temperature
- -30...80 °C
- IP rating per IEC 60529
- IP67
DimensionØ 10 x 20 mm
Installationfor flush mounting
InterfaceSpecial interface
Sensitivityadjustable on base unit
Material sensing surfacePTFE
Approval/ConformityCE; cULus; WEEE
