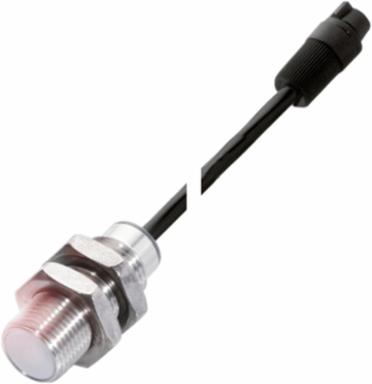

Balluff BCS M12T4D-XXS40C-EP02-GZ01-002 Capacitive Sensor Head, 12 x 30 mm, PTFE, IP67
- MPN: BCS M12T4D-XXS40C-EP02-GZ01-002
- PPN: BAL-BCS0018
CAD
$297.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Our capacitive sensor heads are used when a sensor with integrated electronics would not function optimally due to the surroundings. For example at extreme temperatures or under the maximum pressure. Their compact design also makes them suitable for use in tight spaces. The sensor heads are operated via a separate amplifier.
Documentation & Downloads
Specifications
Additional
| Thread Size | M12x1 |
|---|---|
| Material | PTFE sensing surface, Stainless steel housing (1.4301), PUR cable |
| Sensitivity | Adjustable on base unit |
| Installation | Flush mounting |
| Connection | Cable with special connector, 2.00 m, PUR |
| Approval/Conformity | CE, cULus, WEEE |
| Dimension | 12 x 30 mm |
|---|---|
| Range | 0.1-4 mm |
| Interface | Special interface |
| Ambient Temperature | -30 to 80 C |
| IP Rating | IP67 |
