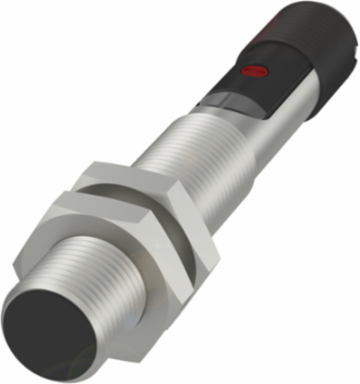

Balluff BCS M12B4G2-NOC40D-S04K Capacitive Sensor, 12 x 75 mm, 1-4 mm Sensing Range, IP67
- MPN: BCS M12B4G2-NOC40D-S04K
- PPN: BAL-BCS00P3
CAD
$281.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Capacitive sensors for object detection feature a straight-line electrical field. They detect both solid bodies, such as wafers, PCBs, cartons, paper stacks, bottles, plastic blocks and plates, and liquids through container walls or glass or plastic tubes (thickness max. 4 mm).
Documentation & Downloads
Specifications
Additional
| Operating Voltage | 10-30 VDC |
|---|---|
| Switching Frequency | 100 Hz |
| Ambient Temperature Range | -25 to 85 C |
| Thread Size | M12x1 |
| Installation | Flush mounting |
| Material Sensing Surface | PBT |
| Series | M12 |
| Switching Output | NPN Normally closed (NC) |
|---|---|
| Sensing Range | 1-4 mm |
| Diameter x Length | 12 mm x 75 mm |
| Connection Type | M12x1 Male, 4-pin |
| Housing Material | Stainless steel (1.4305) |
| Compliance | CE, cULus, WEEE |
| Sensitivity | Switching distance adjustable |
