Balluff BCS D22T405-XXS10C-EP02-GZ01-002 Capacitive Sensor Head, Ø 22 x 4 mm, 1...10 mm Range, IP66
Balluff BCS D22T405-XXS10C-EP02-GZ01-002 Capacitive Sensor Head, Ø 22 x 4 mm, 1...10 mm Range, IP66
- MPN: BCS D22T405-XXS10C-EP02-GZ01-002
- PPN: BAL-BCS001F
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$305.21/ EA
Description

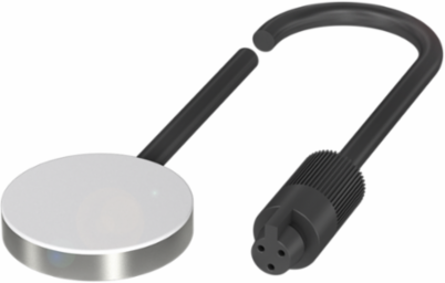

Engineered for precision and durability, the capacitive sensor head from Balluff is a standout in the D22 series, featuring a compact design with dimensions of Ø 22 x 4 mm. This sensor is capable of detecting materials within a range of 1 to 10 mm, making it ideal for various industrial applications. Constructed with a PTFE sensing surface and housed in robust 1.4301 stainless steel, it boasts an impressive IP66 rating, ensuring reliable performance even in harsh environments. With an adjustable sensitivity feature and a temperature tolerance of -30 to 80 °C, this sensor head is designed for flush mounting and comes equipped with a 2.00 m PUR cable with a special connector, making installation seamless and efficient.
Specifications
Specifications
- Country of Origin
- Germany
- Series
- D22
- Connection
- Cable with connector, Special connector-Special connector, 2.00 m, PUR
- Range
- 1...10 mm
- Housing material
- 1.4301 stainless steel
- Ambient temperature
- -30...80 °C
- IP rating per IEC 60529
- IP66
DimensionØ 22 x 4 mm
Installationfor flush mounting
InterfaceSpecial interface
Sensitivityadjustable on base unit
Material sensing surfacePTFE
Approval/ConformityCE; cULus; WEEE
