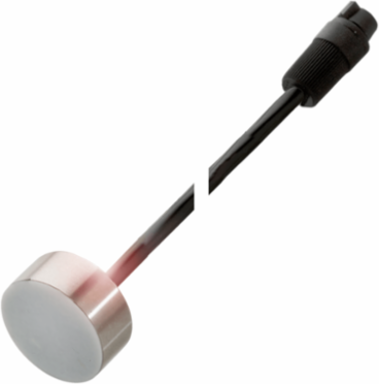

Balluff BCS D22T408-XXS10C-EP02-GZ01-002 Capacitive Sensor Head, Ø 22 x 10 mm, Stainless Steel, IP66


Balluff BCS D22T408-XXS10C-EP02-GZ01-002 Capacitive Sensor Head, Ø 22 x 10 mm, Stainless Steel, IP66
- MPN: BCS D22T408-XXS10C-EP02-GZ01-002
- PPN: BAL-BCS001H
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$305.21/ EA
Description
Our capacitive sensor heads are used when a sensor with integrated electronics would not function optimally due to the surroundings. For example at extreme temperatures or under the maximum pressure. Their compact design also makes them suitable for use in tight spaces. The sensor heads are operated via a separate amplifier.
Specifications
Specifications
- Dimension
- Ø 22 x 10 mm
- Installation
- for flush mounting
- Interface
- Special interface
- Sensitivity
- adjustable on base unit
- Material sensing surface
- PTFE
- Approval/Conformity
- CE, cULus, WEEE
SeriesD22
ConnectionCable with connector, Special connector-Special connector, 2.00 m, PUR
Range1-10 mm
Housing materialStainless steel (1.4301)
Ambient temperature-30-80 °C
IP ratingIP66
