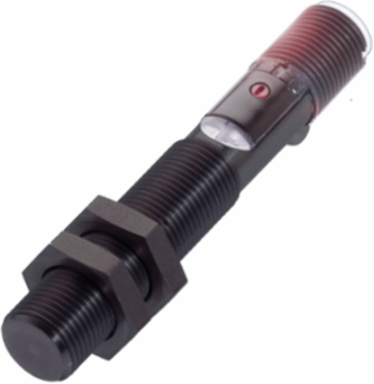

Balluff BCS M12BBG2-POC40D-S04K Capacitive Sensor, 12mm Diameter, Adjustable Range 1-4mm, IP67
- MPN: BCS M12BBG2-POC40D-S04K
- PPN: BAL-BCS00PK
CAD
$151.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Capacitive sensors for object detection feature a straight-line electrical field. They detect both solid bodies, such as wafers, PCBs, cartons, paper stacks, bottles, plastic blocks and plates, and liquids through container walls or glass or plastic tubes (thickness max. 4 mm).
Documentation & Downloads
Specifications
Additional
| Operating Voltage | 10-30 VDC |
|---|---|
| Range | 1-4 mm |
| Switching Output | PNP Normally closed (NC) |
| IP Rating | IP67 |
| Thread Size | M12x1 |
| Installation | Flush mounting |
| Material Sensing Surface | PBT |
| Approval/Conformity | CE, cULus, WEEE |
| Switching Frequency | 100 Hz |
|---|---|
| Switching Distance | 4 mm |
| Ambient Temperature | -25 to 85 B0C |
| Dimension | D8 12 x 75 mm |
| Connection | Connector, M12x1-Male, 4-pin |
| Housing Material | PBT |
| Series | M12 |
