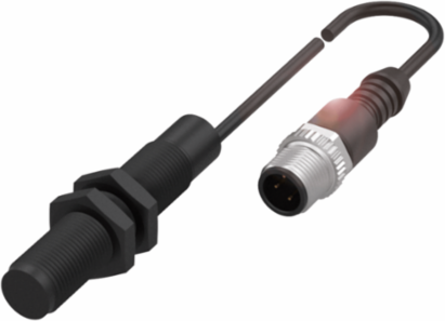

Balluff BCS M12BBI1-PSC40D-EP00,35-S04G Capacitive Sensor 12mm x 61mm, IP67, 1-4mm Detection Range
- MPN: BCS M12BBI1-PSC40D-EP00,35-S04G
- PPN: BAL-BCS00TL
CAD
$218.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Capacitive sensors for object detection feature a straight-line electrical field. They detect both solid bodies, such as wafers, PCBs, cartons, paper stacks, bottles, plastic blocks and plates, and liquids through container walls or glass or plastic tubes (thickness max. 4 mm).
Documentation & Downloads
Specifications
Additional
| Range | 1-4 mm |
|---|---|
| Operating Voltage | 10-30 VDC |
| Diameter | 12 mm |
| Installation | Flush mounting |
| Switching Output | PNP Normally open (NO) |
| Material Sensing Surface | PBT |
| IP Rating | IP67 |
| Switching Frequency | 100 Hz |
|---|---|
| Ambient Temperature | -25 to 85 0C |
| Length | 61 mm |
| Connection | Cable with connector, M12x1 Male, 4-pin, 0.35 m, PUR |
| Housing Material | PBT |
| Approval/Conformity | CE, cULus, WEEE |
