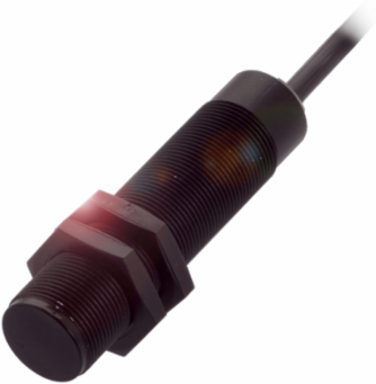

Balluff BCS M18BBN1-NOC80D-EP02 Capacitive Sensor, Ø 18 x 75 mm, IP67, 10-30 VDC, 1-8 mm Range
- MPN: BCS M18BBN1-NOC80D-EP02
- PPN: BAL-BCS00M3
CAD
$166.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Capacitive sensors for object detection feature a straight-line electrical field. They detect both solid bodies, such as wafers, PCBs, cartons, paper stacks, bottles, plastic blocks and plates, and liquids through container walls or glass or plastic tubes (thickness max. 4 mm).
Documentation & Downloads
Specifications
Additional
- Operating Voltage
- 10-30 VDC
- Rated Operating Distance
- 8 mm
- Switching Output
- NPN Normally closed (NC)
- Dimension
- Ø 18 x 75 mm
- Installation
- Flush mounting
- Housing Material
- PBT
- IP Rating
- IP67
- Ambient Temperature Range
- -25 to 85 °C
- Material Jacket
- PUR
- Cable Diameter
- 4.6 mm
- Tightening Torque
- 2 Nm
- Rated Operating Current
- 100 mA
- Hysteresis Max.
- 15 %
- Temperature Drift Max.
- 20 % [-5…55 °C]
- Series
- M18
Range1-8 mm
Switching Frequency100 Hz
SensitivitySwitching distance adjustable
Thread SizeM18x1
ConnectionCable, 2.00 m, PUR
Material Sensing SurfacePBT
Approval/ConformityCE, cULus, WEEE
Material CoverPA
Number of Conductors3
Conductor Cross-section0.34 mm²
No-load Current18 mA
Voltage Drop Static Max.1.5 V
Repeat Accuracy Max.2 %
Protection ClassII
