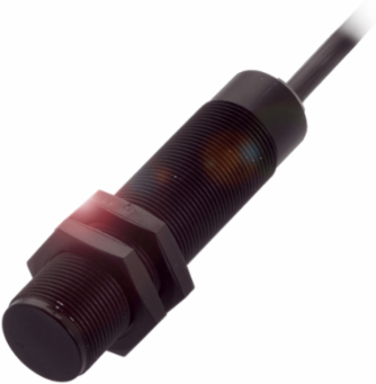

Balluff BCS M18BBN1-NSC80D-EP02 Capacitive Sensor, Ø 18 x 75 mm, Range 1-8 mm, 10-30 VDC, IP67
- MPN: BCS M18BBN1-NSC80D-EP02
- PPN: BAL-BCS00M2
CAD
$166.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Capacitive sensors for object detection feature a straight-line electrical field. They detect both solid bodies, such as wafers, PCBs, cartons, paper stacks, bottles, plastic blocks and plates, and liquids through container walls or glass or plastic tubes (thickness max. 4 mm).
Documentation & Downloads
Specifications
Additional
- Operating voltage
- 10-30 VDC
- Switching frequency
- 100 Hz
- Dimension
- Ø 18 x 75 mm
- Connection
- Cable, 2.00 m, PUR
- Housing material
- PBT
- Material jacket
- PUR
- IP rating
- IP67
- Sensitivity
- Switching distance adjustable
Range1-8 mm
Switching outputNPN Normally open (NO)
ThreadM18x1
Ambient temperature-25 to 85 °C
Material sensing surfacePBT
Installationfor flush mounting
Approval/ConformityCE, cULus, WEEE
SeriesM18
