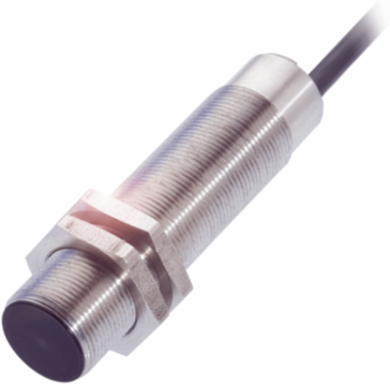

Balluff BCS M18B4N1-POC80D-EP02 Capacitive Sensor, M18, 18 x 75.5 mm, 10-30 VDC, IP67
- MPN: BCS M18B4N1-POC80D-EP02
- PPN: BAL-BCS00LR
CAD
$268.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Capacitive sensors for object detection feature a straight-line electrical field. They detect both solid bodies, such as wafers, PCBs, cartons, paper stacks, bottles, plastic blocks and plates, and liquids through container walls or glass or plastic tubes (thickness max. 4 mm).
Documentation & Downloads
Specifications
Additional
| Operating Voltage | 10-30 VDC |
|---|---|
| Switching Output | PNP Normally closed (NC) |
| Ambient Temperature | -25 to 85 C |
| Thread Size | M18x1 |
| Housing Material | Stainless steel (1.4305) |
| Connection | Cable, 2.00 m, PUR |
| Series | M18 |
| Approval/Conformity | CE, cULus, WEEE |
| Switching Frequency | 100 Hz |
|---|---|
| Measuring Range | 1-8 mm |
| Size | 18 x 75.5 mm |
| Installation Type | Flush mounting |
| Material Sensing Surface | PBT |
| IP Rating | IP67 |
| Sensitivity | Switching distance adjustable |
