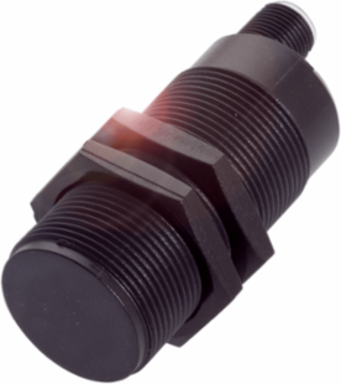

Balluff BCS M30BBI2-NOC15D-S04K Capacitive Sensor, 30 mm, Flush Mount, 10-30 VDC, IP67, 2-15 mm Range
- MPN: BCS M30BBI2-NOC15D-S04K
- PPN: BAL-BCS00NF
CAD
$227.11
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Capacitive sensors for object detection feature a straight-line electrical field. They detect both solid bodies, such as wafers, PCBs, cartons, paper stacks, bottles, plastic blocks and plates, and liquids through container walls or glass or plastic tubes (thickness max. 4 mm).
Documentation & Downloads
Specifications
Additional
| Operating Voltage | 10-30 VDC |
|---|---|
| Measuring Range | 2-15 mm |
| Sensitivity | Switching distance adjustable |
| Diameter | 30 mm |
| Thread Size | M30x1.5 |
| Connection Type | M12x1 Male, 3-pin |
| Material Sensing Surface | PBT |
| IP Rating | IP67 |
| Series | M30 |
| Switching Frequency | 100 Hz |
|---|---|
| Switching Distance | 15 mm |
| Output Type | NPN normally closed (NC) |
| Length | 79 mm |
| Mounting | Flush Mount |
| Ambient Temperature Range | -25 to 85 0C |
| Material Housing | PBT |
| Compliance | CE, cULus, WEEE, IEC 60947-5-2 |
