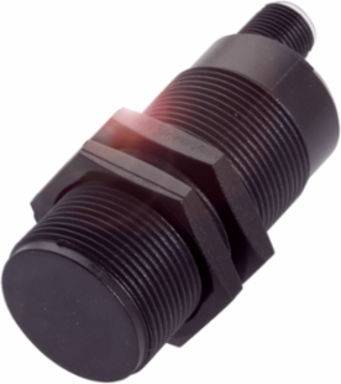

Balluff BCS M30BBI2-POC15D-S04K Capacitive Sensor M30 for Flush Mounting, 30 x 79 mm, 10-30 VDC
- MPN: BCS M30BBI2-POC15D-S04K
- PPN: BAL-BCS00NC
CAD
$164.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Capacitive sensors for object detection feature a straight-line electrical field. They detect both solid bodies, such as wafers, PCBs, cartons, paper stacks, bottles, plastic blocks and plates, and liquids through container walls or glass or plastic tubes (thickness max. 4 mm).
Documentation & Downloads
Specifications
Additional
| Operating Voltage | 10-30 VDC |
|---|---|
| Switching Frequency | 100 Hz |
| No-load Current | 15 mA |
| Rated Insulation Voltage | 75 V DC |
| Hysteresis | 15 % of Sr |
| Ambient Temperature | -25 to 85 C |
| Size | 30 x 79 mm |
| Connection | Connector, M12x1-Male, 3-pin |
| Material Housing | PBT |
| Material Cover | PBT, PA |
| IP Rating | IP67 |
| Series | M30 |
| Tightening Torque | 6 Nm |
| Range | 2-15 mm |
|---|---|
| Operating Current | 100 mA |
| Voltage Drop Max | 1.5 V |
| Repeat Accuracy | 2 % of Sr |
| Temperature Drift | 20 % of Sr [-5 to 55 C] |
| Storage Temperature | -25 to 85 C |
| Thread Size | M30 x 1.5 |
| Installation | Flush mounting |
| Material Sensing Surface | PBT |
| Protection Class | II |
| Compliance | CE, cULus, WEEE |
| Sensitivity | Switching distance adjustable |
